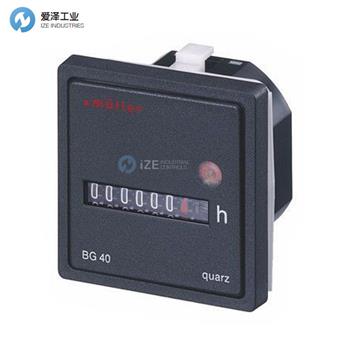

Technical data BG 40 direct current | |
Supply voltages (please state when ordering) | 12-48 V DC (Standard) |
Voltage tolerance | ±10% |
Power consumption (real power) | ca. 20 mW at 12 V DC |
Counter capacity | 999.999 h. |
Accuracy of reading | 0,1 h. |
Numeral height | 4,4 mm |
Numeral colour | white, decimal figures red |
Operation indicator | fast-running wheel |
Permitted ambient temperature | –10°…+50°C |
Housing | self-extinguishing thermoplastic |
Mounting | Panel |
Mounting aperture | Square: 45 x 45 mm |
Type of connection | Universal: Screw, soldered and 6.3 x 0.8 mm AMP plug-type connections |
Type of protection | Front IP 50 to DIN EN 60529 (with ring seal 101.003.004: IP 54) |
Class of protection | III (bis 48 VDC) when fitted in accordance with regulations |
Large format numerals 4.4 mm in height
Easy to connect – screw terminals accessible from rear
Attachments for other cutouts, see accessory
Ring seal for IP 54 – also seals front panel cutout
BG: quartz stabilized
BG: large voltage ranges
Highlights
with retaining clip
with universal connections
touch proof connections to VBG4
low-noise
BW: Alternating current
BG: Direct current quartz
4.4 毫米高的大幅面數字
易于連接 - 可從背面接觸螺釘端子
其他切口的附件，見附件
IP 54 密封圈 – 也密封前面板切口
BG：石英穩定
BG：大電壓范圍
強調
帶固定夾
具有通用連接
與 VBG4 的防觸摸連接
低噪聲
BW：交流電
BG：直流石英
HUGO MUELLER計數器BG40系列其他常見型號：
HUGO MUELLER BG 40.17
HUGO MUELLER BW 40.18
HUGO MUELLER BG 40.27
HUGO MUELLER BW 40.28
HUGO MUELLER BG 40.37
HUGO MUELLER BW 40.38
