CONDOR過載模塊SK-R3/16規格
Horsepower Ratings und Short Cimuit Proteejan acc. to UL 508 | |
Type | SK-R3/16 |
Conrad Block | |
110 - 120 V | |
1-ph | 1 |
3-ph | 2 |
220 - 240 V | |
1-ph | 2 |
3-ph | 5 |
440 - 480 V | |
1-ph | 5 |
3-ph | 10 |
550 - 600 V | |
1-ph | 7? |
3-ph | 10 |
Short Circuit Protection | |
max. V | 600 |
max. Fuse | 60 A |
CONDOR過載模塊SK-R3/16產品介紹

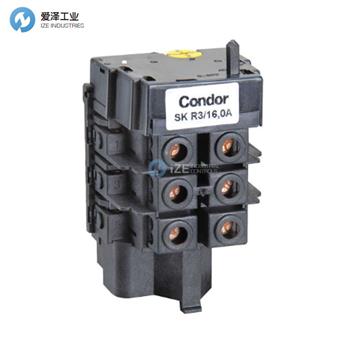

Condor SK-R3/16 thermal overload blocks are used with Condor MDR3 Series pressure switches for overload protection in 3 phase equipment, such as air compressors, mixers, elevators & conveyors. The contacts inside the thermal overload block open up based on the heat generated when the current flowing through the unit is high enough to cause damage to connected equipment. Overload may be caused due to fault in bearing, shaft coupling & motor drive setting or external factors like the improper power supply.
Condor SK-R3/16 熱過載塊與 Condor MDR3 系列壓力開關配合使用，為三相設備（例如空氣壓縮機、攪拌機、升降機和輸送機）提供過載保護。當流經該裝置的電流足夠高，足以損壞所連接的設備時，熱過載塊的觸點會根據產生的熱量而打開。過載可能是由于軸承、聯軸器、電機驅動設置的故障或電源不當?shù)韧獠恳蛩卦斐傻摹?/p>
CONDOR過載模塊常用其他型號：
CONDOR SK-R3/1
CONDOR SK-R3/1,6
CONDOR SK-R3/2.
CONDOR SK-R3/4
CONDOR SK-R3/6,3
CONDOR SK-R3/10
CONDOR SK-R3/16
CONDOR SK-R3/20
CONDOR SK-R3/24
CONDOR SK-R3H16
CONDOR SK-R3H/20
CONDOR SK-R3H/24
CONDOR SK-R3/30/2
CONDOR Pressure Switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于CONDOR過載模塊SK-R3/16的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for CONDOR products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website: www.wap.pnxqid.cn.
