AIR-LOGIC調節閥R7000系列產品參數

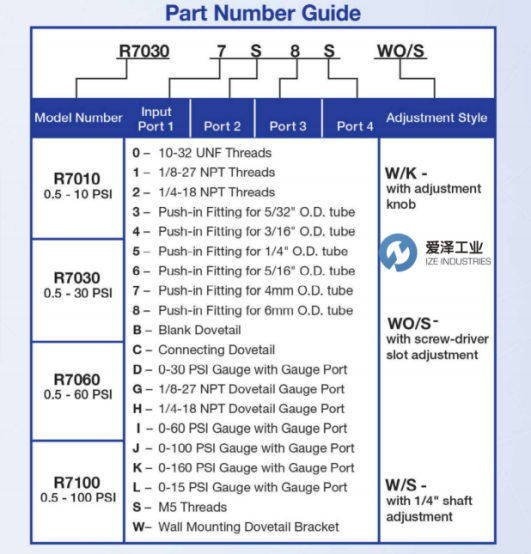

PORT CONNECTIONS | |
Threaded Dovetail: | A Modular Dovetail Slide with 10-32 UNF, 1/8-27 NPT, 1/4-18 NPT thread sizes. The 1/8" and 1/4" NPT contain a brass hoop ring insert. The 1/8" and 1/4" gauge port is available. During assembly fittings should be finger tight plus one turn. |
Union Dovetail: | A Modular Dovetail Slide with a thru hole joining two units together with a common air supply. |
Connecting Dovetail: | A Modular Connecting Dovetail Slide with no hole joining two units together with no common air supply. |
Gauge Dovetail: | A Modular Dovetail Slide with 1/8-27 NPT or1/4-18 NPT thread sizes. The Dovetail Slide has the word "gauge" molded into the slide. |
Blank Dovetail: | 2 Blank Dovetail Slides are supplied as standard. |
Push-in Fitting Dovetail: | Available for 5/32", 3/16', 1/4", 5/16',4mm and 6mm O.D. Tubing. |

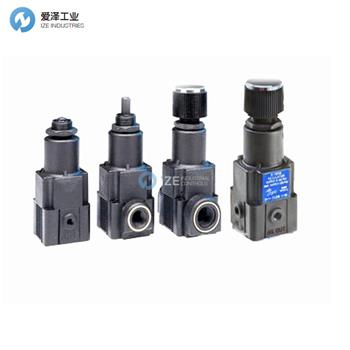

AIR-LOGIC調節閥R7000系列產品介紹及選型
The Modular Subminiature Precision Pressure Regulator is designed for precise regulation of pressure. It is ideal for instrumentation and industrial applications. The pressure regulator has a 20 turn adjustment range from 0.5 to 100 PSI. Maximum supply is 150 PSI. Four adjustment ranges are available: 10 PSI, 30 PSI, 60 PSI and 100 PSI. The standard device is furnished with an adjustment knob and is also available with an extended 1/4" shaft to accept an adjustment knob or furnished with an exposed screwdriver adjustment by which the pressure range can be adjusted.
The Unique Modular Dovetail design allows the regulator to be used individually or assembled into a modular combination of pneumatic components.
Specifications
Adjustment Range: 0.5 to 100 PSI
Maximum Supply: 150 PSI
Operating Temperature: 40 degrees to 150 degrees F (4 degrees to 66 degrees C)
Recommended Filtration: 5 Micron
Effect of Supply Variation: Within .1 PSI output change with 10 PSI supply change
Flow Regulator: Maximum flow 5 SCFM with 100 PSI supply
Repeatability: Within .1 PSI when the supply pressure is turned off and on
Drift: At 75 degrees F. 0.1 PSI total drift
Supply Consumption: Within 400 cc/m at 100 PSI supply, with a deadend output
Materials
Housing: Glass filled Celcon
Adjustment Screw: Carbon Filled Nylon
Retaining Ring: Carbon Spring Steel
Stem Assembly: Celcon
Diaphragm: Buna N, Polyurethane
Diaphragm Assembly: Celcon
Springs: Stainless Steel
O-Rings: Buna N, Silicone Nitrile
Valve Seat: PVC
Filter: Stainless Steel 304, Micron size 380
Manifold Mount Screws: Zinc
特征
模塊化超小型精密壓力調節器專為精確調節壓力而設計。它是儀器儀表和工業應用的理想選擇。壓力調節器有 20 圈的調節范圍，從 0.5 到 100 PSI。最大供應量為 150 PSI。提供四種調節范圍：10 PSI、30 PSI、60 PSI 和 100 PSI。標準設備配備一個調節旋鈕，也可配備一個加長的 1/4" 軸以接受調節旋鈕或配備一個暴露的螺絲刀調節器，通過它可以調節壓力范圍。
獨特的模塊化燕尾設計允許調節器單獨使用或組裝成氣動元件的模塊化組合。
規格
調整范圍：0.5 至 100 PSI
最大供應量：150 PSI
工作溫度：40 到 150 華氏度（4 到 66 攝氏度）
推薦過濾：5微米
供應變化的影響：在 0.1 PSI 輸出變化內，10 PSI 供應變化
流量調節器：最大流量 5 SCFM，100 PSI 供應
重復性：當供應壓力關閉和打開時，在 0.1 PSI 內
漂移：在 75 華氏度時。 0.1 PSI 總漂移
耗材消耗量：400 cc/m 以內，100 PSI 供應，無輸出
材料
外殼：玻璃填充 Celcon
調節螺絲：碳填充尼龍
擋圈：碳彈簧鋼
閥桿組件：Celcon
隔膜：丁腈橡膠 N，聚氨酯
隔膜組件：Celcon
彈簧：不銹鋼
O 形圈：丁腈橡膠，硅膠丁腈
閥座：PVC
過濾器：不銹鋼 304，微米尺寸 380
歧管安裝螺釘：鋅

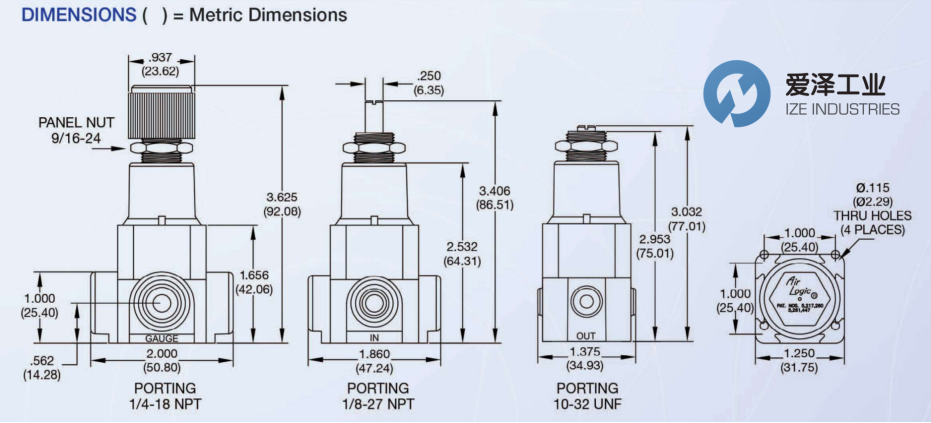

尺寸圖
