SKF監控模塊CMPT CTU技術規格
Speciications | |
Power requirements | |
Supply Voltage: | +24 V DC (22 to +28 V DC) |
Supply current: | 250 mA, maximum |
Power: | 6 W, maximum |
Sensor input: | – Vibration: Constant current source accelerometer (10, 30, 100, 230 mV/g) |
Vibration process analysis | |
Acceleration Enveloping, gE (Filter band3): | 500 Hz to 10 kHz |
Acceleration, g: | 3 Hz to 10 kHz (RMS and Peak Hold) |
Velocity, mm/s (inch/s), ISO: | 10 Hz to 1 kHz or 2 Hz to 1 kHz |
Vibration signal decay: | 1 or 10 seconds(Acceleration Enveloping only) |
Output | |
Processed vibration: | 4 to 20 mA/0 to 10 V DC proportional to full scale vibration |
Temperature: | 4 to 20 mA/0 to 10 V DC proportional to 0 to +120 °C |
Buffered acceleration output: | BNC connector, screw terminals |
Output averaging: | On/Off |
CAN-bus: | SKF protocol (see SKF CMPT CTU Instruction Manual for details) |
Auxiliary power: | 24 V DC/20 mA maximum |
Environmental | |
Operating temperature: | 0 to +70 °C(32 to +160 °F) |
Storage temperature: | –40 to +85 °C(–40 to +185 °F) |
Humidity: | 95% maximum |
IP rating: | IP20 |
Mechanical | |
Weight: | 0,225 kg (0.102 lbs.) |
Enclosure: | Thermoplastic ABS |
Color: | Gray |
Connectors: | Two 8-pole pluggable screw clamp type (16 total) |
Wiring: | 0,2 to 2,5 mm (24 to 12 AWG) |
Mounting: | 35 mm DIN-rail type EN50022 with steel retaining clip |
Minimum space between CTU’s: | 5 mm |
Dimensions: | – Height: 75 mm (2.95 in.) |
Approval: | CE |
SKF監控模塊CMPT CTU產品介紹
SKF CMPT銅頭變送器模塊（CTU）是數字振動和溫度變送器。它可以用作機械故障檢測系統的一部分。SKF CMPT CTU可以進行三種類型的振動信號過程分析-SKF的加速度包絡（gE），加速度或速度（mm / s或inch / s）。用戶可以選擇振動分析的類型。SKF CMPT CTU具有與處理后的振動和溫度成比例的模擬輸出信號，用于連接到自動化系統以及SKF CMPT DCL警報和顯示監視器。SKF CMPT CTU可以處理來自SKF CMPT系列傳感器或其他工業加速度計的振動信號。
? SKF的加速包絡振動分析可用于識別由于零件松動，齒輪故障，缺乏潤滑和滾動軸承損壞而導致的機械故障所產生的重復沖擊型振動。
? 加速度振動分析可用于監視整體機械和結構振動，包括帶有軸頸軸承的機械。
? 速度振動分析可用于確定整體機械振動水平，例如松動和不平衡，并包括軸頸軸承對機械的支撐。

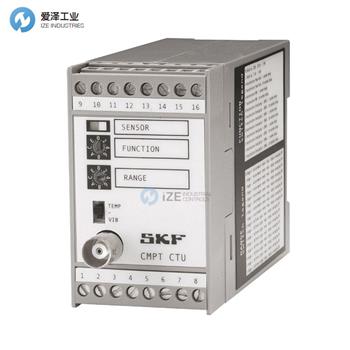

The SKF CMPT Copperhead Transmitter Module (CTU) is a digital vibration and temperature transmitter. It can be used as part of a machinery fault detection system. The SKF CMPT CTU can make three types of vibration signal process analysis – SKF’s Acceleration Enveloping (gE), acceleration(g), or velocity (mm/s or inch/s). The type of vibration analysis is user selectable. The SKF CMPT CTU has analog output signals proportional to the processed vibration and temperature for connection to automation systems and SKF CMPT DCL alarm and display monitors. The SKF CMPT CTU can process vibration signals from the SKF CMPT family of sensors or other industrial accelerometers.
? SKF’s Acceleration Enveloping vibration analysis is useful to identify repetitive impact type vibrations generated by machinery faults due to loose components,gear faults, lack of lubrication and rolling bearing damage.
? The acceleration vibration analysis is useful to monitor overall machinery and structural vibration, including machinery having journal bearings.
? The velocity vibration analysis is useful to identify overall machinery vibration levels such as looseness and unbalance and
including machinery support by journal bearings.
