BUSCHJOST電磁閥84500系列產品參數
Technical features | |
Medium: | Neutral gases and liquids |
Pilot fluid: | Neutral gases max. +60°C (+14°F) |
Switching function: | Normally closed |
Operation: | Pressure actuated by external fluid |
Mounting position: | Optional |
Flow direction: | Determined |
Port size: | G1/2, G3/4, G1, G1 1/4, G1 1/2, G2 1/2 NPT, 3/4 NPT, 1 NPT, 1 1/4 NPT, 1 1/2 NPT, 2 NPT |
Pilot connection: | G1/4 or 1/4 NPT |

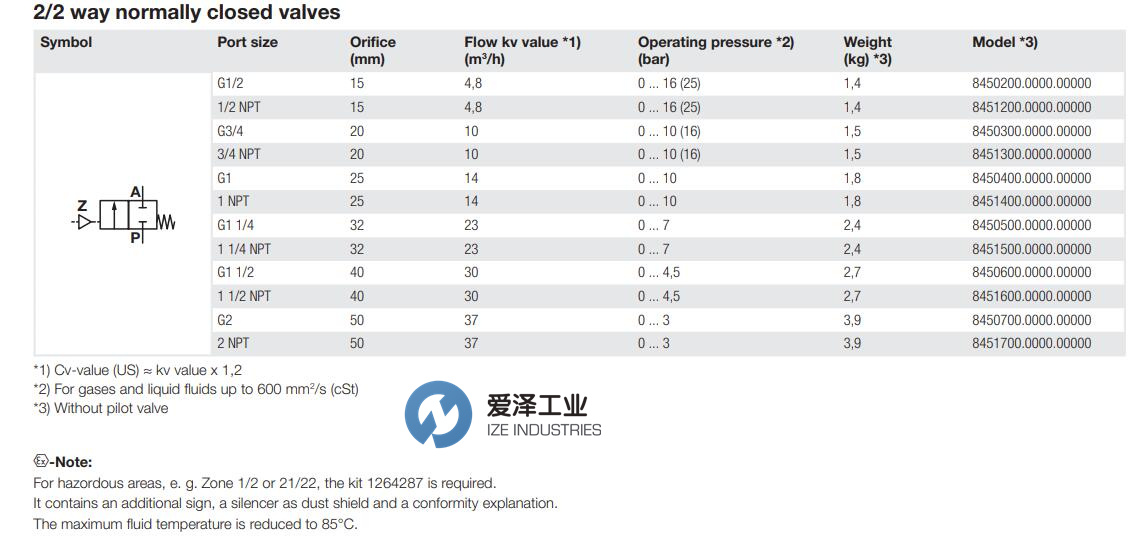

Operating pressure: | See table |
Pilot pressure: | 3,5 ... 10 bar (51 ... 145 psi) |
Fluid temperature: | –10° ... +180°C (+14° ... +356°F) |
Ambient temperature: | –10° ... +60°C (+14° ... +140°F) |
Storage temperature: | -40°C (-40°F) Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F) |
BUSCHJOST電磁閥8450500.0000.00000技術規格
Brass Angle Seat Valve, G1-1 / 4
Part number: 8450500.0000.00000
Operation: 2/2
Port size: G1-1 / 4
Connection: screw
黃銅角座閥，G1-1 / 4
零件編號：8450500.0000.00000
操作：2/2
端口大?。篏1-1 / 4
連接方式：螺絲
BUSCHJOST電磁閥84500系列產品介紹及選型
> Port size: DN 15 ... 50, 1/2” ... 2” (ISO G/NPT)
> Large size drain or shut-off valve
> High flow rate
> Suitable for contaminated process fluids
> Damped closing(Valves closes against flow direction)
> Suitable for lower case vacuum up to max. 90%
> Optical position indicator is standard
> Wide temperature range
> Shock and vibration tested to EN 61373, Category 1, class A and B
>端口尺寸：DN 15 ... 50，1/2” ... 2”（ISO G / NPT）
>大型排水或截止閥
>高流量
>適用于受污染的工藝流體
>阻尼關閉（閥門根據流向關閉）
>適用于小寫真空（最大）。 90％
>光學位置指示器是標準配置
>寬溫度范圍
>沖擊和振動測試符合EN 61373，類別1，A和B級

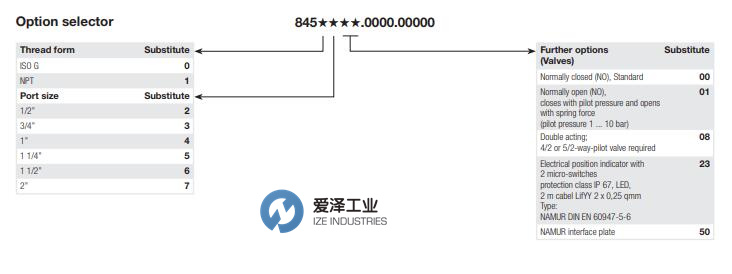

BUSCHJOST電磁閥84500系列其他常見型號：
BUSCHJOST 8450200.0000.00000
BUSCHJOST 8451200.0000.00000
BUSCHJOST 8450300.0000.00000
BUSCHJOST 8451300.0000.00000
BUSCHJOST 8450400.0000.00000
BUSCHJOST 8451400.0000.00000
BUSCHJOST 8450500.0000.00000
BUSCHJOST 8451500.0000.00000
BUSCHJOST 8450600.0000.00000
BUSCHJOST 8451600.0000.00000
BUSCHJOST 8450700.0000.00000
BUSCHJOST 8451700.0000.00000
BUSCHJOST valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BUSCHJOST電磁閥8450500.0000.00000的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BUSCHJOST products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website: www.wap.pnxqid.cn.
BUSCHJOST電磁閥8450500.0000.00000產品規格及描述
