FLOWSERVE氣動執行器S系列技術參數
Operating Conditions | |
Pressure Limitation | 10 bar maximum working pressure |
Media | Air or non-corrosive fluid. |
Temperature Range | Standard -20°C to +80°C |
Rotation (viewed from top) | Pinion rotates anti-clockwise when the centre chamber supply port (RHS) is pressurised. Reverse acting options available. |
Travel (all sizes) | Average 100° total travel to provide nominal 5° over travel clockwise and anti clockwise.SN250/SN300 models - travel stops in outward direction only. |
Extended Travel | 180°, 140°, 120°. For further options consult your local Flowserve sales operation. |
Adjustable Travel Stop | Standard on all 90° versions. |
FLOWSERVE氣動執行器S系列特點及選型
主要特點
鋁合金主體，內部和外部均經過陽極氧化處理。
端蓋，采用超厚環氧涂層進行烤箱處理。
全域可逆，用于更改彈簧故障模式。
接觸面較寬的活塞導向軸承，可提高效率和循環壽命。
如果需要有限的調節或有限的旋轉，則必須進行獨立的打開和關閉調節（S050-S200的標準配置）。
工作溫度范圍為-50°C至+ 150°C。標準-20°C至+ 80°C。
獨特的設計還允許使用非潤滑空氣進行操作。
可現場維護，無需任何特殊工具。
MAIN FEATURES
Aluminium alloy body, internally and externally hard anodised.
End caps, oven-treated with ultra-thick epoxy coating.
Fully field reversible for altering spring failure mode.
Piston guide bearings with wide contact surfaces,increased efficiency and cycle life.
Independent open and closed adjustment (standard across S050-S200) is indispensable where finite adjustment or limited rotation is required.
Working temperatures to cover from -50°C to +150°C.Standard -20°C to +80°C.
The unique design also allows for operation with non-lubricated air.
Maintanable on site without the need for any special tools.
FLOWSERVE氣動執行器S系列其他常用型號：
FLOWSERVE S050D
FLOWSERVE S063D
FLOWSERVE S085D
FLOWSERVE S100D
FLOWSERVE S115D
FLOWSERVE S125D
FLOWSERVE S150D
FLOWSERVE S175D
FLOWSERVE S200D
FLOWSERVE SN250D
FLOWSERVE SN300D
FLOWSERVE Pneumatic actuators NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FLOWSERVE氣動執行器S100D的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for FLOWSERVE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website: www.wap.pnxqid.cn.

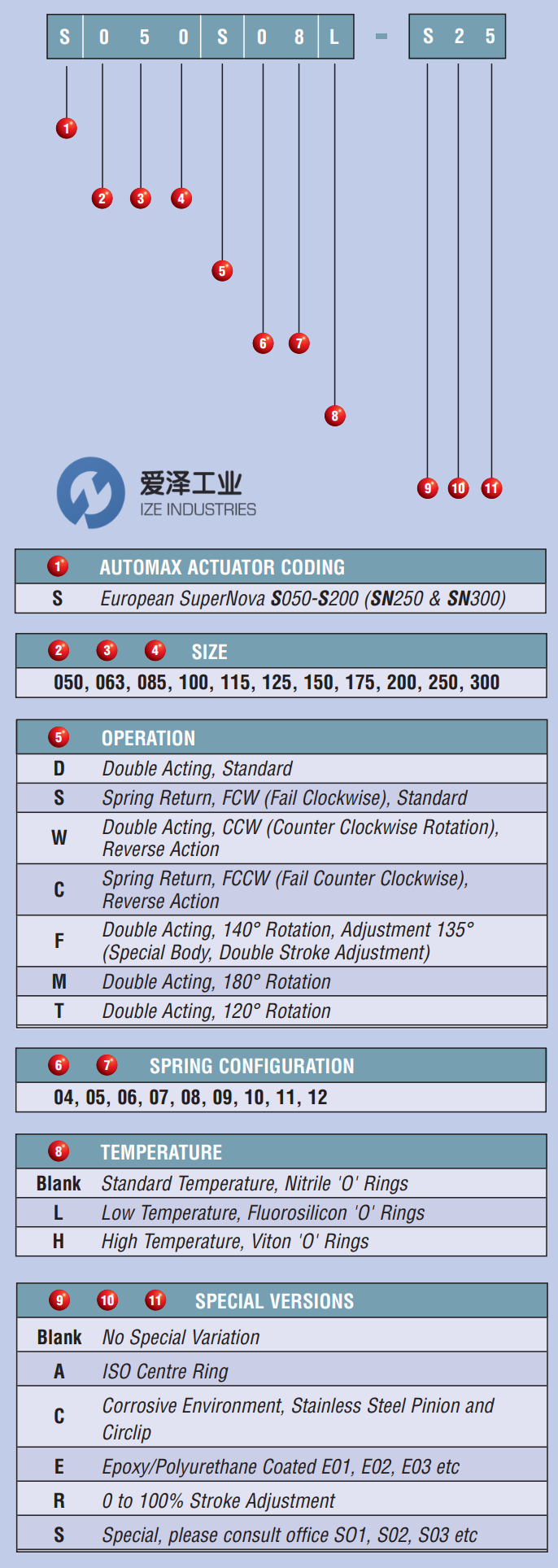

FLOWSERVE氣動執行器S系列S100D介紹及選型
