ABB 定位器AV2系列規格描述
AV2 |
3 - Intrinsically Safe / Explosion:proof Design - Intrinsically Safe Design FM/CSA |
2 - Stroke or Rotary Motion : 4 ... 20 mA Input, 1.0 ... 4.0 in. (25.4 ... 101.6 mm) or 90° Rotation |
3 - Manifold / Gage Block : Gauge Block, Gauge Ports only |
2 - Position Transmitter : 4 ... 20 mA Output |
5 - Drive Shaft : 0.157 in. (4 mm) Flats (for NAMUR Rotary Mounting) |
0 - Options : No Options |

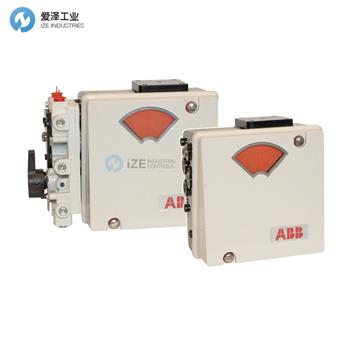

ABB 定位器AV1/AV2系列產品描述
Type AV1 & AV2 Characterizable Positioners are control devices that satisfy a wide range of applications. They provide fast, sensitive, and accurate positioning of pneumatic single or double-acting, linear or rotary motion actuators.
Overview
A mechanical connection from the actuator to a position feedback cam in the positioner establishes actual position. Three characterized segments on one cam provide application flexibility by establishing various relationships between input signal and actuator position. The relationships provided by the segments are square root, linear, and square.
The Type AV1 positioner receives an external pneumatic signal and converts it to a pneumatic output. This output produces the motive force that positions the power actuator.
The type AV2 positioner receives an external 4-20mA signal and converts it to a pneumatic output. This output produces the motive force that positions the power actuator
AV1和AV2型可表征定位器是滿足廣泛應用的控制設備。它們?yōu)闅鈩?dòng)單作用或雙作用，線性或旋轉執行器提供快速，靈敏和準確的定位。
總覽
從執行器到定位器中位置反饋凸輪的機械連接確定了實際位置。通過在輸入信號和執行器位置之間建立各種關系，一個凸輪上的三個特征部分可提供應用靈活性。 段提供的關系是平方根，線性和平方。
AV1型定位器接收外部氣動信號并將其轉換為氣動輸出。該輸出產生定位電動執行器的原動力。
AV2型定位器接收外部4-20mA信號并將其轉換為氣動輸出。該輸出產生的動力將電動執行器定位

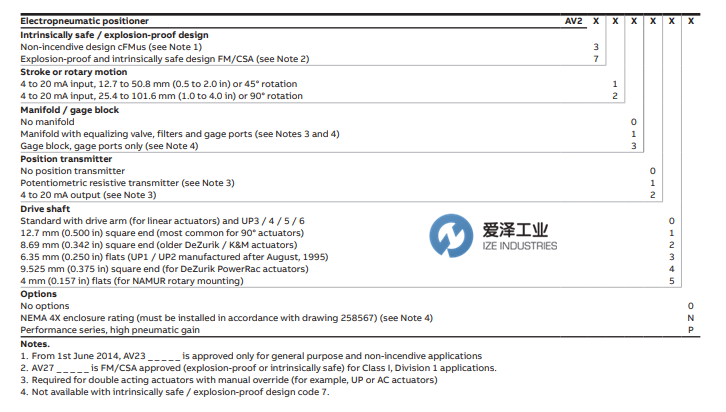

ABB 定位器AV2系列選型
ABB定位器AV2系列其他常見型號:
ABB AV2.3.2.3.2.5.0
ABB AV2321000
ABB AV1.1.1.3.0.0.0
ABB AV2323250
ABB Locator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ABB定位器AV2.3.2.3.2.5.0的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ABB products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website: www.wap.pnxqid.cn.
ABB定位器AV2.3.2.3.2.5.0規格描述
