SENTRY關斷閥TSV技術參數
SPECIFICATIONS | |
pressure rating | 4400 psi (303 bar) |
downstream pressure rating | 250 psi (17 bar) |
temperature rating | 250°F (121°C) |
trip temperature | 120°F (49°C); other temperature settings available |
pressure drop | Cv=0.21 |
wetted materials | 316 SS, Viton?, PEEK |
connections | 1/4 in tube stubs |
shutoff time | less than 5 seconds after temperature reaches set point |
reset time | temperature must drop 2–3°F (1–2°C) below set point |
shipping weight | 1.75 lb (794 g) |
optional elastomer | Kalrez |
optional position indicating dry contact specifications | contact ratings: 10 A at 125 and 250 VAC; 0.5 A at 125 VDC; 0.25 A at 250 VDC; NEMA A300 |
SENTRY關斷閥TSV產品介紹及尺寸圖
Sentry TSV是一種獨立的機械設備，可保護操作員，分析儀和采樣組件免受高溫液體的傷害。它是電磁截止閥和溫度控制器的經濟可靠的機械替代品，不需要外部電源，空氣或液壓裝置。
傳感器/執行器直接暴露于樣品介質。高溫會在不到五秒鐘的時間內啟動設備。高溫的某些原因包括冷卻水損失，冷卻水壓力或流量不足，冷卻水溫度高，樣品流速高，進樣器冷卻器中的盤管破裂或樣品冷卻器結垢或堵塞。
Sentry TSV是一種可靠的機械解決方案，無需任何電源即可運行，可提供可靠的閉合。跳閘后必須手動將其重置，以確保在糾正系統故障的原因之前不會恢復樣品流。
Sentry TSV應該安裝在減壓設備的下游以及分析儀，流量計和其他低壓設備的上游。跳閘后，Sentry TSV的上游側將承受全部源壓力。紅色指示器可以很容易地以視覺方式指示閥門位置，并且可選開關可為遠程警報提供信號。
The Sentry TSV is a self-contained, mechanical device that protects operators, analyzers and sampling components from high temperature liquids. It is an economical and reliable mechanical replacement for a solenoid shutoff valve and temperature controller, requiring no external source of electricity, air or hydraulics.
The sensor/actuator is directly exposed to the sample medium. High temperatures actuate the device in less than five seconds. Some of the causes of high temperatures include loss of cooling water, insufficient cooling water pressure or flow, high cooling water temperature, high sample flow rate, a ruptured coil in the sampler cooler, or a fouled or plugged sample cooler.
A reliable mechanical solution that requires no electricity to operate, the Sentry TSV provides positive closure. It must be manually reset after a trip, which ensures that sample flow is not resumed before the cause of the system upset has been corrected.
The Sentry TSV should be installed downstream of the pressure-reducing device and upstream of analyzers, flowmeters and other low-pressure devices. After a trip, the upstream side of the Sentry TSV will be exposed to the full source pressure. A red indicator readily provides visual indication of valve position, and an optional switch is available to provide a signal for a remote alarm.
SENTRY關斷閥TSV其他常用型號：

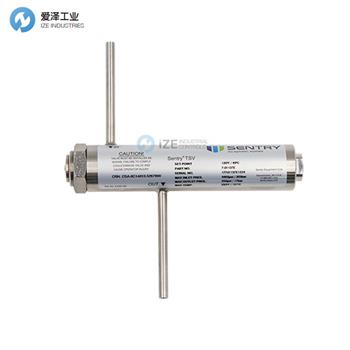

SENTRY TSV
SENTRY THERMAL SHUTOFF VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SENTRY關斷閥TSV的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SENTRY products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website: www.wap.pnxqid.cn.

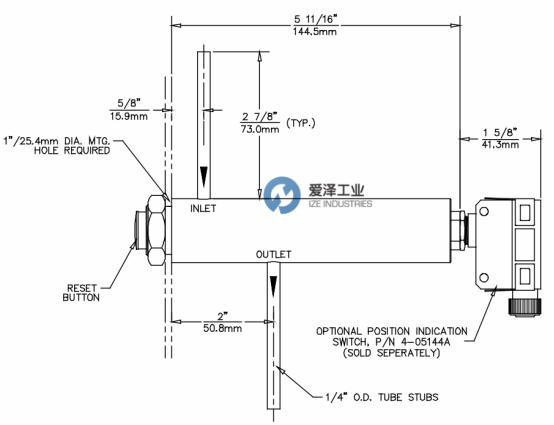

SENTRY關斷閥TSV技術參數及尺寸圖
