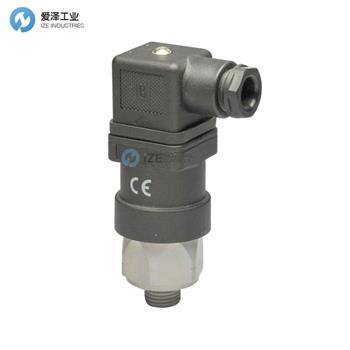

SUCO壓力開關0194-45703-1-0003技術參數
Pmax. in psi (bar) | 1 ,450 psi (100 bar) |
Adjustment range in psi (bar) | 4.35- 21.75 psi (0.3- 1.5 bar) |
Tolerance in psi (bar) at room temperature | ±2.90 psi (±0.2 bar) |
Male thread | 1/4" BSPP |
Seal material- Application areas | NBR (BunaN) Hydraulic/machine oil, heating oil, air, nitrogen, etc. |
Order number | 0194-457 03-1-003 |
SUCO壓力開關0194系列介紹
0194系列隔膜壓力開關采用工業級材料制成。采用特殊的微動開關作為帶金觸點的轉換。開關點易于調節。還可提供工廠預設開關點。過壓穩定性高，遲滯可調。
? 鍍鋅鋼 (CrVI-free)
? 類似于 DIN EN 175301 的插座設備
? 采用金觸點的快速操作
? 過壓安全性高達 1450 / 4350 psi (100 / 300 bar)
? 差速器可在工廠調節
The 0194 series diaphragm pressure switches are made from high-quality industrial-grade materials. Features a special microswitch as changeover with gold contacts. The switching point is easy adjustable. Also available with factory preset switching point. High overpressure stability, adjustable hysteresis.
? Zinc-plated steel (CrVI-free)
? Socket device similar to DIN EN 175301
? Snap action with gold contacts
? Overpressure safety up to 1450 / 4350 psi (100 / 300 bar)
? Differential adjustable at factory
SUCO壓力開關0194系列選型
SUCO壓力開關0194系列其他常用型號：
SUCO 0194-45701-1-001
SUCO 0194-45703-1-003
SUCO 0194-45704-1-318
SUCO 0194-45709-1-314
SUCO 0194-45720-1-301
SUCO 0194-45721-1-302
SUCO 0194-45801-1-040
SUCO 0194-45803-1-042
SUCO 0194-45804-1-343
SUCO 0194-45809-1-340
SUCO 0194-45820-1-341
SUCO 0194-45821-1-342
SUCO PRESSURE SWITCHES NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SUCO壓力開關0194-45703-1-0003的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SUCO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website:www.wap.pnxqid.cn.
SUCO壓力開關0194系列0194-45703-1-0003技術參數及選型
