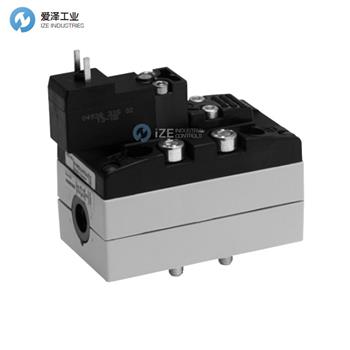

REXROTH電磁閥5811150130技術描述
型號 | 5811150130 |
系列 | 581 |
ISO size / Connection ports | 1：1/4" and 3/8" NPT, G1/8, G 1/4, ? 6 - 8 mm |
Valve body/function | 1：5/2 single solenoid, spring return |
Control version | 5：El. 2 W, 1 pilot valve (15 mm) |
Flow controls/Pilot control | 0:Without flow controls |
Coil | 1：24 V DC |
El. connector/Pilot type | 3： 15 mm pilot valve, pin dist. 8 mm without connector (IP65/NEMA 4) |
REXROTH電磁閥581系列介紹
Series 581 - A complete series of standardized pneumatic valves
Series 581 valves provide for pneumatic valve interfaces based on ISO/EN and CNOMO standards.Available in four ISO 5599-1 sizes, 581 offers the entire performance range of pneumatic valves,either as a single valve or valve terminal system, with electric or pneumatic control. The 581 incorporates a non-lubricated, balanced spool and sleeve consisting of a stainless steel sleeve with a polished inner diameter, a nylon spool, and a series of static o-rings encapsulated by Tefl on wear rings to reduce friction. Valves are available in 5/2-way and 5/3-way spool confi gurations for all sizes 1-4, and 2x3/2-way spool configuration for size 1. Flow rates range from 1.1 to 6.0 Cv.Series 581 is used in many sectors, such as the automotive industry, as well as the wood, print,paper heavy industries and many others , heavy industries and many others.
581系列-完整系列的標準化氣動閥
581系列閥門提供了基于ISO / EN和CNOMO標準的氣動閥門接口。581提供四種ISO 5599-1尺寸，可提供氣動閥的整個性能范圍，可以是單個閥或閥島系統，具有電動或氣動控制。 581包含一個非潤滑，平衡的閥芯和由不銹鋼套筒組成的套筒具有拋光的內徑，一個尼龍線軸和一系列由Tefl封裝的靜態O形圈，磨損環以減少摩擦。 閥門有5/2向和5/3向閥芯配置，可用于所有尺寸為1-4，尺寸為1的2x3 / 2閥芯配置。流量范圍為1.1至6.0 Cv。581系列用于許多行業，例如汽車工業以及木材，印刷品，造紙重工業等。重工業等。
REXROTH電磁閥581系列選型
REXROTH電磁閥581系列其他常見型號：
REXROTH 5811010000
REXROTH 5811020000
REXROTH 5812010000
REXROTH 5812020000
REXROTH 5813010000
REXROTH 5813020000
REXROTH 5814010000
REXROTH 5814020000
REXROTH 5811080000
REXROTH 5812080000
REXROTH 5813080000
REXROTH 5814080000
REXROTH directional valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的首選渠道。
如果有任何關于REXROTH電磁閥5811150130的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website: www.wap.pnxqid.cn.
REXROTH電磁閥5811150130技術數據及特征
