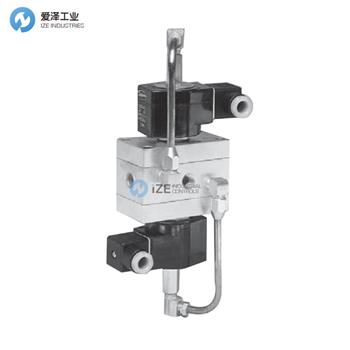

JEFFERSON電磁閥1339系列規格描述
specifications | ||||||||
? Connect. | ? Passaje mm. | KvCoef. m3/h | Bar Dp | Weight kg. (*) | Catalog No according to body material | |||
Maximun | Minimum | Aluminium | Brass | Stainless steel AISI . 304 | ||||
Acrylo - Nitrile diaphragm | ||||||||
1/4” | 6 | 0,34 | 0,5 | 10 | 2,2 (1,3) | 1339LA1 | 1339BA1 | 1339SA1 |
3/8” | 8 | 0,68 | 1339LA2 | 1339BA2 | 1339SA2 | |||
1/2” | 10 | 1,27 | 1339LA3 | 1339BA3 | 1339SA3 | |||
Viton? diaphragm | ||||||||
1/4” | 6 | 0,34 | 0,5 | 10 | 2,2 (1,3) | 1339LV1 | 1339BV1 | 1339SV1 |
3/8” | 8 | 0,68 | 1339LV2 | 1339BV2 | 1339SV2 | |||
1/2” | 10 | 1,27 | 1339LV3 | 1339BV3 | 1339SV3 | |||
JEFFERSON電磁閥1339系列產品簡介
4路，3個位置，閉心。
它允許操作雙作用氣缸或執行器。
鋁、黃銅和不銹鋼主體。
BSP或NPT 1/4“，3/8”，1/2”螺紋連接。
閥座關閉，4個隔膜，分別堵住各個通道。
容量大，運行速度快。
無需潤滑即可運行，是儀表空氣的理想選擇。
帶有內部排放的先導孔，它可以操作危險液體或不允許泄漏的液體，如氣體、燃料、水、輕油和其他類似液體。
成型一個DIN43650連接封裝線圈。
IP65和NEMA 4保護。
選項：
?通電線圈指示燈。
?防爆和/或防風雨線圈和外殼。
4 ways, 3 positions, closed center.
It allows to operate double acting cylinders or actuators.
Aluminium, brass and stainless steel body.
BSP or NPT 1/4", 3/8", 1/2" threaded connections.
Seat shutoff, 4 diaphragms which plug up the respective ways.
High capacity and operation speed.
No need for lubrication to operate, ideal for instrument air.
Pilot orifices with internal discharge, it may operate dangerous fluids or those which do not allow spills, such as gas, fuel, water, light oils and other similar fluids.
Shape A DIN 43650 connection encapsulated coils.
IP65 and NEMA 4 protection.
Options:
?Energized coil indicator light.
?Explosion and / or weather proof coils and housings.
JEFFERSON電磁閥1339系列其他常用型號：
JEFFERSON 1339LA1
JEFFERSON 1339LA2
JEFFERSON 1339LA3
JEFFERSON 1339BA1
JEFFERSON 1339BA2
JEFFERSON 1339BA3
JEFFERSON 1339SA1
JEFFERSON 1339SA2
JEFFERSON 1339SA3
JEFFERSON 1339LV1
JEFFERSON 1339LV2
JEFFERSON 1339LV3
