GO調節閥H2-1Z23Q3I411規格介紹
Technical Data | |
CONSTRUCTION | 316L stainless steel |
OUTLET PRESSURES | 0–10, 0–25, 0–50, 0–100, 0–250, and0–500 psig |
OPERATING TEMPERATURE | up to 380° F (193° C) |
HEATING CAPACITY RANGES (IN WATTS) | 40, 50, 100, and 150 |
CV COEFFICIENTS | 0.06, 0.025, 0.2 |
CERTIFICATIONS | CSA certifi cation # LR-82566-5 |
GO調節閥H2-1Z23Q3I411介紹

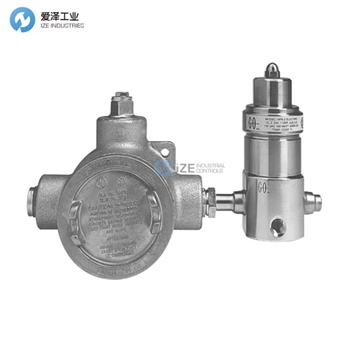

The HPR-2 Series Heated Pressure Regulator is designed to supply heat to samples entering instrumentation systems. It can be used to preheat liquids, to prevent condensation of gases or to vaporize liquids prior to gas analysis.
The modular design of the HPR-2 consists of heat exchanger and pressure control sections. The pressure control section is patterned after the time proven design of the PR-1 pressure reducing regulator and provides the same excellent outlet pressure stability. The heat exchanger section is made up of a body and a heat exchange element. The heat exchange element uses GO’s unique spiral wrapped screen as the heat exchange surface. This screen has up to 100 square inches of heat transfer area and careful design forces all sample flow to pass through the element.
316L stainless steel construction
Electropolished body with better than 25 Ra finish in diaphragm cavity
Operating temperatures up to 550°F (285°C)
Bubble tight shutoff
Outlet pressure ranges are 10, 25, 50, 100, 250 and 500 psig
Modular pressure control and heat exchanger assemblies for easy maintenance
Unique spiral wrapped heat exchange element provides up to 100 square inches of heat transfer area
Proof pressure is 2 times maximum working pressure
Burst pressure is 4 times maximum working pressure
Weight: 4.0 lbs (1.81 kg)
Mounting style is surface or panel (see Outline and mounting dimensions)
HPR-2系列加熱壓力調節器旨在為進入儀器系統的樣品提供熱量。它可用于預熱液體，以防止氣體凝結或在氣體分析之前蒸發液體。
HPR-2的模塊化設計包括熱交換器和壓力控制部分。壓力控制部分采用經過久經考驗的PR-1減壓調節器設計而成，并具有相同的出色出口壓力穩定性。熱交換器部分由主體和熱交換元件組成。換熱元件使用GO獨特的螺旋包裹式屏幕作為換熱表面。該篩網的傳熱面積最大為100平方英寸，仔細的設計迫使所有樣品流都通過元件。
316L不銹鋼結構
隔膜腔中的電拋光體具有優于25 Ra的光潔度
工作溫度高達550°F（285°C）
氣泡緊密關閉
出口壓力范圍為10、25、50、100、250和500 psig
模塊化壓力控制和熱交換器組件，易于維護
獨特的螺旋包裹式熱交換元件可提供高達100平方英寸的傳熱面積
耐壓是最大工作壓力的2倍
爆破壓力是最大工作壓力的4倍
重量：4.0磅（1.81千克）
安裝方式為表面或面板（請參見外形和安裝尺寸）

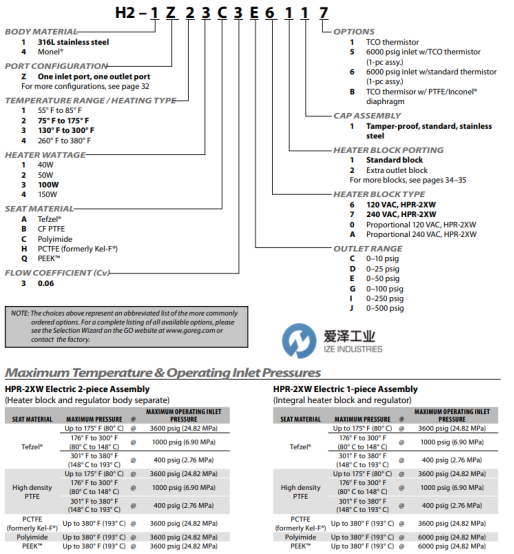

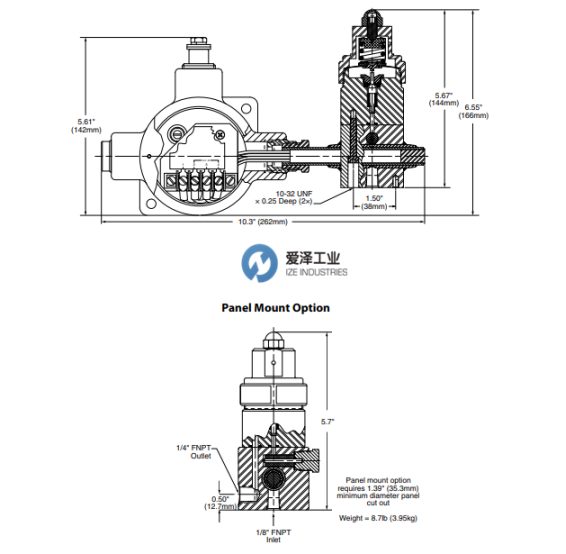

GO調節閥HPR-2XW系列選型表及尺寸圖
GO調節閥HPR-2XW系列型號
GO H2-1Y24Q3G4111
GO H2-1L55C3G211
GO H2-Z23Q3I411
GO H2-1Z33Q3G411
