KITZSCT閥RD8MSI-VFC產品參數
Dimensions | |
Type | RD8MSI-VFC |
Connection | 1/2" CVC Female |
L | 3.27(83.0) |
L1* | - |
H | 3.90(99.0) |
H1 | 0.63(16.0) |
A | 2.36(60.0) |
B | 1.42(36.0) |
C | 1.42(36.0) |
M | 1.10(28.0) |
M1 | 2-M5 Depth 0.20 (5.0) |
Model |
|
Specifications | ||
Size | RD8 (1/2") | |
Cv | 0.25 | |
Maximum Operating Pressure | 3000psig (20.6MPa (G)) | |
Wetted area Valume | 0.397in3 (6.7cm3) | |
Straight flow, CVC male, OPEN state | ||
Fluid Temperature Range | PCTFE | -10oC~42oC |
PI *1 | -10oC~150oC | |
Atmospheric Temperature | PCTFE | -10oC~40oC |
PI | -10oC~60oC | |
Leak Rates | Across the Seat He Leak Test Rates | ￡ 1×10-9 sccs (￡ 1×10-10Pa·m3/sec) |
Inboard He Leak Test Rates | ￡ 1×10-9 sccs (￡ 1×10-10Pa·m3/sec) | |
Cycle Life | Manual Valve | 30,000 cycles |
(N2 Charged, Own Test) | Pneumatic Valve | 100,000 cycles |
KITZSCT閥RD系列產品介紹
KD系列可實現緊湊型直接隔膜閥的高Cv值。這些閥門具有可以處理半導體生產設備中使用的高純度氣體的質量，并且還具有高耐用性和高耐腐蝕性。
特點
手動閥
大直徑的車輪手柄可提供平穩的操作感覺。
閥門采用大窗口，開/關顯示清晰可見，一目了然。
氣動閥
新型立式圓柱執行器的線距最小，安裝后無需擔心方向。
采用KITZ SCT的專利楔形力助力器，實現了緊湊，高耐用的執行器。
進一步提高了執行器與主體之間的連接處的剛性，從而提高了可靠性。
即使在0.4-0.7 MPa（G）的下限壓力下，也能確保穩定的開關操作。
The KD series realizes a high Cv value for compactly designed direct diaphragm valves. These valves are of the quality that they can handle the high-purity gases used in semiconductor production facilities, and they also have high durability and high corrosion resistance performance.
Features

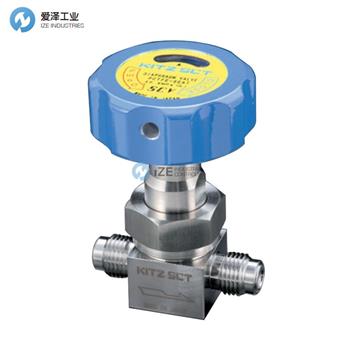

Manual Valve
Large diameter wheel handle provides smooth operation feel.
The valves employ a large window and easy-to-see OPEN/CLOSE display so that the state of the valve can be confirmed at a glance.
Pneumatic Valve
The new type vertical cylindrical actuator accommodates a minimal line pitch, so there is no need to worry about the orientation after installation.
A compact, high-durability actuator is realized as a result of adopting KITZ SCT's patented wedge-type force booster.
The rigidity of the joint between the actuator and the body is further increased for improved reliability.
Stable opening and closing operation is ensured even at the lower limits of operating pressure, 0.4-0.7 MPa (G).
KITZSCT閥RD8MSI-VFC
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件KITZSCT 閥部分型號：
KITZSCT RD2MSH-VC
KITZSCT RD4MSH-VC
KITZSCT RD4MSI-VC
KITZSCT RD8MSI-VC
KITZSCT RD2MSH-VFC
KITZSCT RD4MSH-VFC
KITZSCT RD4MSI-VFC
KITZSCT RD8MSI-VFC
KITZSCT RD2MSH-SC
KITZSCT RD4MSH-SC
KITZSCT RD4MSI-SC
KITZSCT RD8MSI-SC
KITZSCT RD2MSH-WC
KITZSCT RD4MSH-WC
KITZSCT RD4MSI-WC
KITZSCT RD8MSI-WC
KITZSCT RD2CSH-VC
KITZSCT RD4CSH-VC-971
KITZSCT RD4CSI-VC-972
KITZSCT RD8CSI-VC
KITZSCT RD2CSH-VFC
KITZSCT RD4CSH-VFC-1371
KITZSCT RD4CSI-VFC-1295
KITZSCT RD8CSI-VFC
KITZSCT RD2CSH-SC
KITZSCT RD4CSH-SC-1484
KITZSCT RD4CSI-SC
KITZSCT RD8CSI-SC
KITZSCT RD2CSH-WC
KITZSCT RD4CSH-WC-1408
KITZSCT RD4CSI-WC-1571
KITZSCT RD8CSI-WC
KITZSCT RD2MBH-VC
KITZSCT RD4MBH-VC
KITZSCT RD4MBI-VC
KITZSCT RD8MBI-VC
KITZSCT RD2MBH-VFC
KITZSCT RD4MBH-VFC
KITZSCT RD4MBI-VFC
KITZSCT RD8MBI-VFC
KITZSCT RD2MBH-WC
KITZSCT RD4MBH-WC
KITZSCT RD4MBI-WC
KITZSCT RD8MBI-WC
KITZSCT RD2CBH-VC
KITZSCT RD4CBH-VC
KITZSCT RD4CBI-VC
KITZSCT RD8CBI-VC
KITZSCT RD2CBH-VFC
KITZSCT RD4CBH-VFC
KITZSCT RD4CBI-VFC
KITZSCT RD8CBI-VFC
KITZSCT RD2CBH-WC
KITZSCT RD4CBH-WC
KITZSCT RD4CBI-WC
KITZSCT RD8CBI-WC
KITZSCT valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于KITZSCT閥RD8MSI-VFC的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for KITZSCT products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website: www.wap.pnxqid.cn.
