MTL模塊MTL4852技術參數
SPECIFICATION | |
MTL 4852 Secondary Interface Module | |
Number of HART channels | 16 (ch17 to ch256 in 16 channel groups) |
Channel device type | HART rev 5-7 |
Channel interface | 2 connections to each channel |
MTL systems interface | Up to 15 off MTL 4852 modules per MTL 4851 |
Power requirements | Powered from MTL 4851 module |
ENVIRONMENTAL | |
Temperature range | |
Operating: | -40°C to +60°C |
Non-operating: | - 40°C to +85°C |
Relative humidity | 5% to 95% - non-condensing |
MECHA NICAL | |
Dimensions | See drawing |
Weight | MTL4852 75gm |
MTL模塊MTL4500系列產品介紹
MTL4852和MTL4852 HART復用器
Crouse-Hinds 系列 MTL4852 和 MTL4852 HART 連接系統提供了一種智能設備、控制系統和在 PC 上運行的 HART 儀器管理軟件之間的簡單接口。
該系統基于 16 通道模塊化設計，提供一個緊湊、易于配置和擴展的系統。通過標準 RS485 串行連接，最多可以在單個網絡上連接 7,936 個 HART 設備。
認證與符合性
區域 2（安裝）
分區 2（安裝）
ATEX 和 IECEx
工作溫度范圍：-40°C 到 +60°C
非工作溫度范圍：-40°C 到 +85°C
設計特點
設計用于直接安裝到各種通用 HART 連接單元和 IS 背板上
提供與現場智能設備的簡單接口
可以在單個 RS485 網絡上連接最多 7,936 個 HART 設備
故障診斷的 LED 指示燈
自動波特率檢測
與 HART 配置和儀器管理軟件（IMS）的連接性

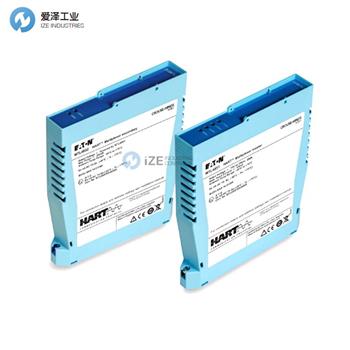

MTL4852 & MTL4852 HART Multiplexers
The Crouse-Hinds series MTL4852 and MTL4852 HART connection system provides a simple interface between smart devices in the field, control systems and HART instrument management software run on a PC.
The system is based on 16-channel modularity to provide a compact, easily configurable and expandable system. Using a standard RS485 serial link, up to 7,936 HART devices can be connected on a single network.
Certifications and compliances
Zone 2 (mounting)
Division 2 (mounting)
ATEX and IECEx
Operating temperature range: -40°C to +60°C
Non-operating temperature range: -40°C to +85°C
Design features
Designed to mount directly to a range of general purpose HART connection units and IS backplanes
Provides a simple interface to smart devices in the field
Connect up to 7,936 HART devices on a single RS485 network
LED indication for fault diagnosis
Auto baud rate detection
Connectivity to HART configuration and Instrument Management Software (IMS)
MTL模塊其他常用型號：
MTL MTL4850
MTL MTL4851
MTL MTL4852
MTL MTL4854
