MTL模塊MTL4851技術參數
SPECIFICATION | |
MTL4851 Master Communications Module | |
Number of HART channels | 16 (ch1 to ch16) |
Channel device type | HART rev 5-7 |
Channel interface | 2 connections to each channel |
Host system interface | |
RS485 2-wire multidrop | (up to 31 MTL 4851 modules can be connected to one host) |
RS485 baud rate | 38400, 19200, 9600, 1200 baud- auto detected |
Address selection | up to 31 addresses, set on backplane |
Alarm output | Open-collector transistor, referenced to 0V |
ENVIRONMENTAL | |
Temperature range | |
Operating: | -40°C to +60°C |
Non-operating: | - 40°C to +85°C |
Relative humidity | 5% to 95% - non-condensing |
MECHA NICAL | |
Dimensions | See drawing |
Weight | MTL4851 95gm |
MTL模塊MTL4500系列產品介紹
MTL4851和MTL4852 HART復用器
Crouse-Hinds 系列 MTL4851 和 MTL4852 HART 連接系統提供了一種智能設備、控制系統和在 PC 上運行的 HART 儀器管理軟件之間的簡單接口。
該系統基于 16 通道模塊化設計，提供一個緊湊、易于配置和擴展的系統。通過標準 RS485 串行連接，最多可以在單個網絡上連接 7,936 個 HART 設備。
認證與符合性
區域 2（安裝）
分區 2（安裝）
ATEX 和 IECEx
工作溫度范圍：-40°C 到 +60°C
非工作溫度范圍：-40°C 到 +85°C
設計特點
設計用于直接安裝到各種通用 HART 連接單元和 IS 背板上
提供與現場智能設備的簡單接口
可以在單個 RS485 網絡上連接最多 7,936 個 HART 設備
故障診斷的 LED 指示燈
自動波特率檢測
與 HART 配置和儀器管理軟件（IMS）的連接性

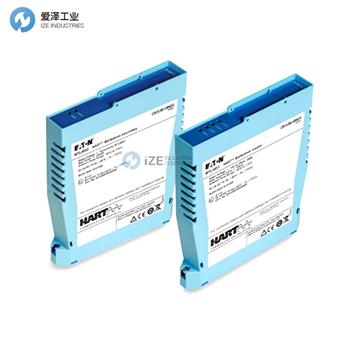

MTL4851 & MTL4852 HART Multiplexers
The Crouse-Hinds series MTL4851 and MTL4852 HART connection system provides a simple interface between smart devices in the field, control systems and HART instrument management software run on a PC.
The system is based on 16-channel modularity to provide a compact, easily configurable and expandable system. Using a standard RS485 serial link, up to 7,936 HART devices can be connected on a single network.
Certifications and compliances
Zone 2 (mounting)
Division 2 (mounting)
ATEX and IECEx
Operating temperature range: -40°C to +60°C
Non-operating temperature range: -40°C to +85°C
Design features
Designed to mount directly to a range of general purpose HART connection units and IS backplanes
Provides a simple interface to smart devices in the field
Connect up to 7,936 HART devices on a single RS485 network
LED indication for fault diagnosis
Auto baud rate detection
Connectivity to HART configuration and Instrument Management Software (IMS)
MTL模塊其他常用型號：
MTL MTL4850
MTL MTL4851
MTL MTL4852
MTL MTL4854
MTL Module NEW + ORIGINAL+ ONE YEAR WARRANTY
