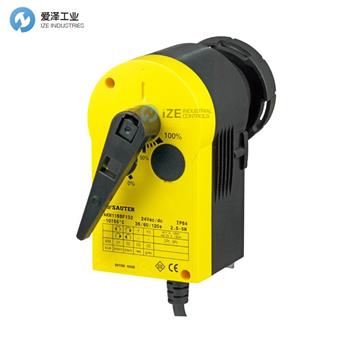

SAUTER執行器AKM115系列技術參數
Technical data | |
Power supply | |
Power supply 24 V~ | +20%, 50...60 Hz |
Power supply 24 V= | -10%.. .20% |
Power consumption | 4.9 W/8.7 VA |
Parameters | |
Running time") | 35/60/120 s |
Angle of rotation | 90* |
Response bme | 200 ms |
Power cable | 1.2 m,5x 0.5 mm2 |
Positioner | |
Positioning signal y | 0...10V R> 100 kQ |
Posilional feedback signal | 0...10 V; load> 10 kQ |
Starting point Uo | 0Vor 10 V |
Contral span oU | 10 V |
Switching range Xgh | 200 mV |
Ambient conditions | |
Temperature of medium2) | Max. 100 °C |
Admissible ambient temperature | –10...55 °C |
Admissible ambient humidity | 5...95% rh, no condensation |
Construction | |
Fitting | Vertically upright to horizontal, not upside down |
Weight | 0.7 kg |
Housing | Lower section black, upper section yellow |
Housing material | Fire-retardant plastic |
Standards and directives | |
Type of protection | IP54 as per EN 60529 |
Protection class | III as per IEC 60730 |
SAUTER執行器其他常用型號：
SAUTER AKM105SF132
SAUTER AKM115SF132
SAUTER Actuator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SAUTER執行器AKM115SF132的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SAUTER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website:www.wap.pnxqid.cn.
SAUTER執行器AKM115系列AKM115SF132介紹及技術參數
