JR MERRITT操縱桿XL-VNSO系列技術參數
General Data | |
# of Axis | Single, Dual or Three* |
Output Options | Potentiometer, Microswitches, Hall-Effect, PWM & CAN |
Joystick Action | Spring Return |
Handle Travel | +/- 36 degrees each axis (potentiometer) |
Gate | Open or Cross |
Handle Compatibility | Standard Handles, Round Ball, Mechanical Interlock, FG-3, FG-4, FG-5, RH, RHS, BH, MG1, MG2, MG13, MG9 / MG25, MG27, G56 |
Life | 20 million cycles |
Materials | Aluminum body and nickel chronium yoke. |
Est. Shipping Weight | 5 lbs. |
Est. Shipping Dimensions | 13 in. x 10 in. x 8 in. |

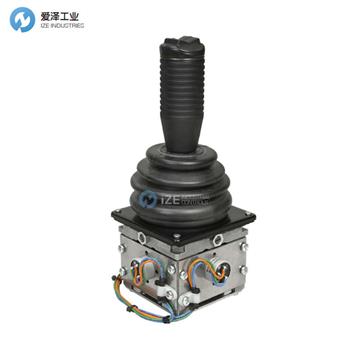

JR MERRITT操縱桿XL-VNSO系列介紹
XL-VNSO 操縱桿具有與標準 VNSO 相同的堅固結構和長壽命，但尺寸更緊湊。這種高負荷操縱桿通常用于空間受限但仍需要重型結構和操作的應用。與 VNSO 不同，XL-VNSO 可以配置微動開關、霍爾效應和 PWM 輸出類型。
? 多功能設計
? 超重型結構
? 每軸均具有長壽命雙壓縮回位彈簧
? 鎳鉻萬向節支架（性能類似于不銹鋼）
? 硬化鋼軸承和拋光鋼軸導軌
? 青銅門把手止動件
? 保形涂層電子元件可防潮
? V7 11A 型 C 型開關。
? 霍爾效應輸出符合或超過 CE EMC 要求
The XL-VNSO joystick shares the same rugged construction and long-life as the standard VNSO, but in a more compact size. This high-duty joystick is often used in applications with space constraints that still require heavy duty construction and operation. Unlike the VNSO, the XL-VNSO can be configured with microswitches, hall-effect and PWM output types.
? Versatile design
? Super heavy-duty construction
? Long-life, dual compression return springs each axis
? Nickel chromium gimbal yokes (properties similar to stainless steel)
? Hardened steel bearings and polished steel shaft guides
? Bronze gate handle stops
? Conformal coated electronics to resist moisture
? Type V7 11A form C switches.
? Hall-effect output meets or exceeds CE EMC requirements
JR MERRITT操縱桿XL-VNSO系列其他常用型號：
JR MERRITT XL-VNSOV-15331
JR MERRITT XL-VNSOV-12342
