PROVAL電動蝶閥V101系列規格
規格：DN25 - DN600
工作溫度：-30℃～+200℃（取決于閥座）
工作壓力：最大16bar
Sizes:DN25 - DN600
Working Temperature:-30 oC ~ +200 oC (Depending on Seat)
Woking Pressure:Max 16 bar
PROVAL電動蝶閥V101系列介紹
V101系列薄型蝶閥
Proval V101薄型蝶閥在水和廢水、海水、鋼鐵、食品、造紙、化工、石化以及所有供熱和制冷管道中都有廣泛應用。由于其緊湊的設計、輕便的配重和完美的密封結構，Proval蝶閥在各個行業中獲得了廣泛的應用。
Proval蝶閥技術規格
提供從DN25到DN600的薄型設計
可選的閥體材料：GG25 / GGG40 / A216 Gr WCB / AISI316
可選的閥盤材料：AISI316 / NiAluBronze / Super Duplex
可選的座墊材料：EPDM、NBR、FKM、VMQ、SBR、NR
方形軸，配有流向指示器，按照閥扭矩值設計，適合直接安裝執行器
ISO 5211頂部法蘭，適合直接安裝執行器
多個定位孔，兼容EN1092 PN10、PN16、ANSI 125/150和BS10 表D、表E法蘭
座墊易于更換，適合所有化學工藝
簡單的四耳定位系統，便于法蘭的安裝與準確定位
銅/PTFE上軸承和密封系統
防脫落閥桿，確保工藝/操作安全
帶序列號和完整閥材質詳情的標識標簽
長頸設計便于絕緣處理
銅/PTFE中心閥桿軸承，確保閥門與執行器之間的順暢操作
座墊內置雙O型圈系統，防止?jié)撛诘拈y桿泄漏
兩件式閥桿設計，提供更高的流量能力（Kv）
鰭槽密封設計，最小化摩擦和扭矩值，延長座墊和閥門的使用壽命
方便用六角扳手拆卸的下閥桿塞，以更換閥門的任何部件
鑄造熱編號，確保材料可追溯性

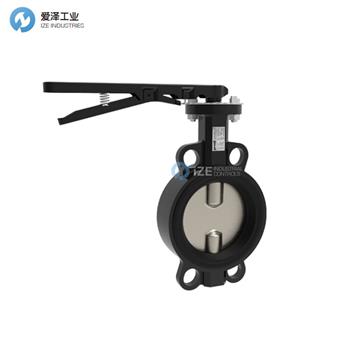

V101 Series Wafer Type Butterfly Valves
Proval V101 Wafer butterfly valves have a wide range of applications in water and wastewater, seawater, iron and steel, food, paper, chemical, petrochemical and all heating and cooling lines. Thanks to their compact design, lightweight, and perfect sealing structure, Proval butterfly valves have gained a very wide range of applications in various industries.
Proval Butterfly Valve Technical Specifications
Available in sizes from DN25 to DN600 in wafer type
GG25 / GGG40 / A216 Gr WCB / AISI316 body material options
AISI316 / NiAluBronze / Super Duplex disc options
EPDM, NBR, FKM, VMQ, SBR, NR seat options
Square shaft with flow direction indicator designed according to valve torque value and suitable for direct actuator mounting
ISO 5211 top flange suitable for direct actuator mounting
Multiple centring holes to EN1092 PN10, PN16, ANSI 125/150 and BS10 Table-D, Table-E flanges
Easily replaceable seat with options suitable for all chemical processes
Simple 4 lug centring system for easy and accurate flange mounting
Bronze/PTFE upper shaft bearing and sealing system
Anti-blowout stem for process/operator safety
Identification label with serial number and full valve material details
Easy insulation with long neck design
Bronze/PTFE centre stem bearing for smooth operation of valve with actuators
Internal double O-ring system on seat to prevent potential stem leakage
2-piece stem design for higher flow capacity (Kv)
Tongue and groove seal design that minimises friction and torque values, extending the life of the seat and therefore the valve
Bottom stem plug that can be easily removed with an Allen wrench to replace any part of the valve
Cast heat number for material traceability
PROVAL電動蝶閥其他常用型號：
PROVAL V101-250(PA160DA)-G3
PROVAL Electric butterfly valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于PROVAL電動蝶閥V101-250(PA160DA)-G3的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for PROVAL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website: www.wap.pnxqid.cn.
PROVAL電動蝶閥V101系列V101-250(PA160DA)-G3技術參數介紹
