UE PRECISION壓力開關E48W系列技術參數
Available Settings | 10 to 150 Torr |
Deadband | 20 Torr + 5% of Setting |
Repeatability | ± 5 Torr + 2% of Setting |
Internal Volume | 2.22 CC |
Proof Pressure | 0 psia – 15 psig |
Operating Temp. Range | 0° to 130° F |
Finish | 5 Ra typical |
Wetted Materials | 316L per F20 |
Media Connections | 1/4″ end seal type |
Electrical Connections | Free Leads |
Min. Operating Life | 5 Million cycles |
Approvals | UL, CE, ISO 13849 |
UE PRECISION壓力開關E48W系列介紹
E48W 系列絕對高純度壓力開關提供精確、可重復的切換，用于監控/控制和報警/關閉保護。專為高純度氣體系統設計，可在參考絕對零度的壓力點下運行。當大氣壓力變化會對開關操作產生不利影響或需要密封觸點時，應指定這些產品。
特點
? 防篡改（工廠）設置
? 焊接結構
? 二次密封，提供額外保護
? 符合 RoHS 和 REACH 標準
? 經認證的 SIL 3 安全能力

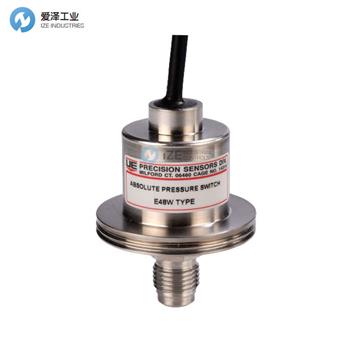

The E48W series absolute high purity pressure switches offer accurate, repeatable switching for monitor/control and alarm/shut down protection. Specifically designed for high purity gas systems, and to operate at pressure points referenced to absolute zero. These products should be specified when changes in atmospheric pressure would have an adverse effect on switch operation or when hermetically sealed contacts are required.
Features
? Tamper proof (factory) setting
? Welded construction
? Secondary seal for added protection
? RoHS and REACH Compliant
? Certified SIL 3 Safety Capable
UE PRECISION壓力開關E48W系列其他常用型號：
UE PRECISION E48W-H16K
UE PRECISION E48W-H38
UE PRECISION E48W-H79
UE PRECISION E48W-H80
UE PRECISION E48W-H89
UE PRECISION E48W-H97
UE PRECISION E48W-H99
UE PRECISION E48W-H125
UE PRECISION E48W-H232
UE PRECISION E48W-H262
UE PRECISION PRESSURE SWITCH NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于UE PRECISION壓力開關E48W-H16K的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for UE PRECISION products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website:www.wap.pnxqid.cn.
UE PRECISION壓力開關E48W系列E48W-H16K技術參數及介紹
