KEYSTONE執行器89D00401XXN14N2M00技術參數
Figure number | 89D: ISO 5211 flange and shaft |
Model/Size | 004: 004 |
Action | 01: DA |
Spring rating | XX: Not applicable |
Air connection | N14: ?" NPT |
Temperature range | N: Standard / General purpose (NBR) |
Travel stops | 2: Dual shaft (std) |
Flange threading | M: Metric |
Variant | 00: Standard |

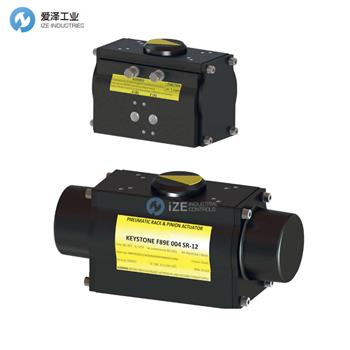

KEYSTONE執行器F89系列介紹
Keystone F89 是一款適用于通用和危險區域應用的氣動直角回轉執行器。 F89 專為簡單、安全使用和可靠性而設計，滿足 EN15714-3 要求，并已在指定條件下經過 500,000 次循環的驗證。
? 直接安裝至所有Keystone 蝶閥和球閥。
? 閥門連接符合Keystone（英制和公制）和ISO 5211 標準。
? 雙齒條和小齒輪設計消除了小齒輪軸上的側向負載，更大限度地減少了軸承磨損并延長了使用壽命。
? 通過標準安裝的行程限位器優化產品流程，用于在打開和關閉位置調節閥門位置（每端+/- 5°）。
? 可根據要求提供可選的“線性行程限位器”以進一步減小旋轉角度。
? 陽極氧化鋁機身采用靜電粉末涂層 (ESPC) 表面處理，可針對腐蝕環境提供持久保護。
? 雙作用和彈簧復位版本可實現經濟高效且安全的操作。
? 多達 12 個獨立彈簧為球閥和蝶閥提供靈活的扭矩范圍。
? 預壓縮彈簧設計和防吹出驅動小齒輪意味著安全的維護和操作。
The Keystone F89 is a pneumatic quarter-turn actuator for general purpose and hazardous area applications. The F89 is designed for simple, safe use and ultimate realiability, meeting EN15714-3 requirements and has been validated to 500,000 cycles under specified conditions.
? Direct mounting to all Keystone butterfly valves and ball valves.
? Valve connection compatible with Keystone (imperial and metric) and ISO 5211.
? Double Rack and Pinion design nullifies side loads on the pinion shaft, minimizing bearing wear and extending life.
? Optimized product flow with standard mounted travel stops for valve position adjustment in open and close position (+/- 5° at each end).
? Optional "Linear Travel Stops" to further reduce the angles of rotation are available on request.
? Anodized aluminium body with electrostatic powder coating (ESPC) finish provides durable protection against corrosive environments.
? Double acting and spring return versions available for cost effective and safe operation.
? Up to 12 individual springs offer flexible torque range for both ball as butterfly valves.
? Pre-compressed spring design and anti-blowout drive pinion means safe maintenance and operation.

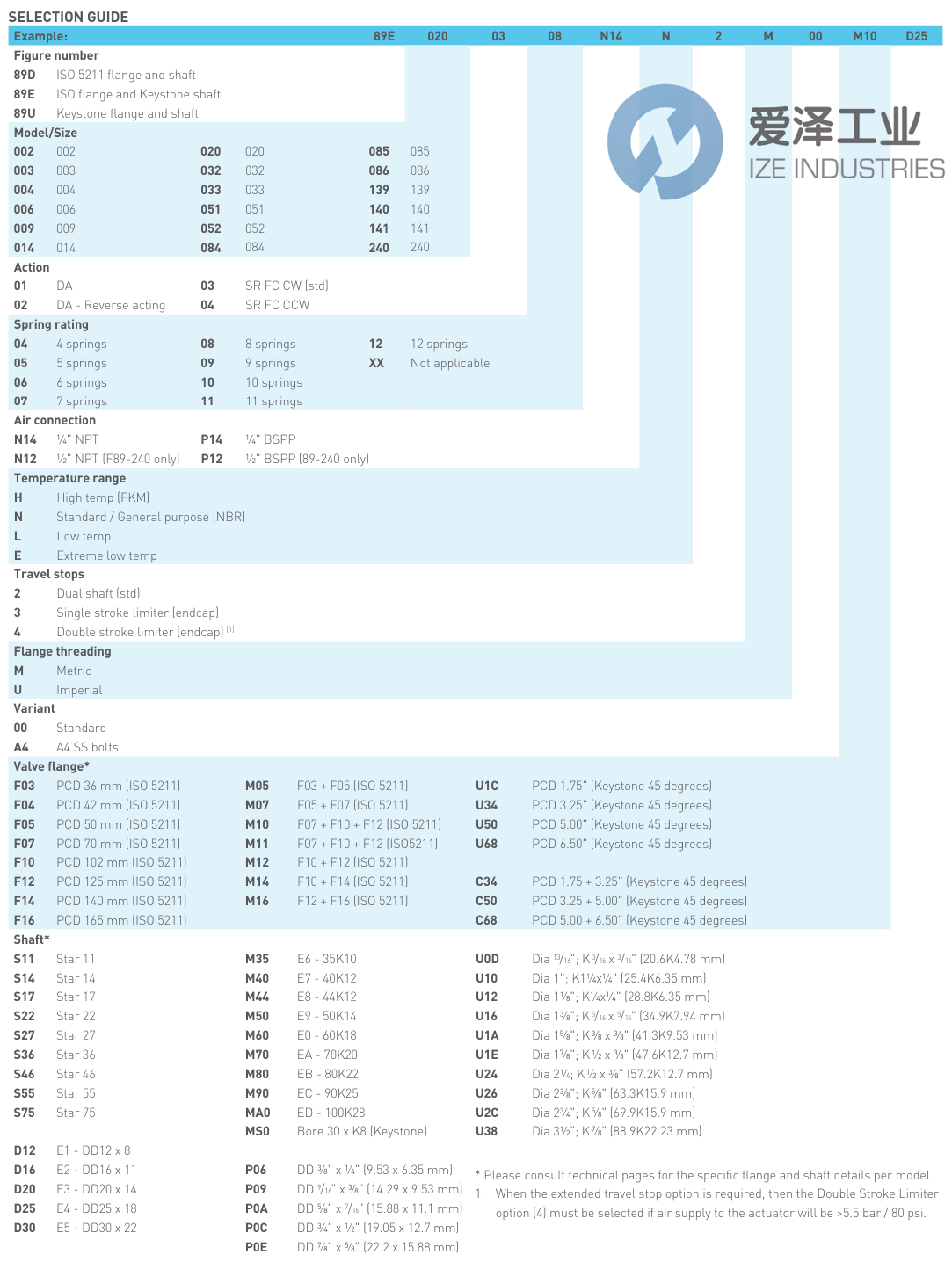

KEYSTONE執行器F89系列選型
KEYSTONE執行器F89系列其他常用型號：
KEYSTONE 89D052Q3S80PM00
KEYSTONE 89D009Q3S80PM00
KEYSTONE 89D003Q1XX0PM00
KEYSTONE 89D004Q1XX0PM00
KEYSTONE 89D009Q1XX0PM00
KEYSTONE 89D009Q1XX0PM00
KEYSTONE 89D009Q1XX0PM00
KEYSTONE 89D004Q1XX0PM00
KEYSTONE 89D00401XXN14N2M00
