DANFOSS壓力變送器MBS3250 060G1864技術參數
Product details | |
Net weight | 0.157 Kg |
Volume | 0.424 Liter |
+ supply | Pin 1 |
- common | Pin 2 |
Accuracy, max. [±FS%] | 1% |
Accuracy, typical [±FS%] | 0.50% |
Adj. zero point and span | No |
Ambient temperature range [°C] [max] | 100 °C |
Ambient temperature range [°C] [min] | -40 °C |
Ambient temperature range [°F] [max] | 212 °F |
Ambient temperature range [°F] [min] | -40 °F |
Approval | ATEX |
Approval comments | ATEX Ex ec IIA T4 Gc |
China RoHS compliance | Yes |
Compensated temp. range [°C] [max] | 100 °C |
Compensated temp. range [°C] [min] | 0 °C |
Compensated temp. range [°F] [max] | 212 °F |
Compensated temp. range [°F] [min] | 32 °F |
Electrical conn. Male/Female | Male and Female |
Electrical connection | Angular connector |
Electrical connection size | Pg 9 |
Electrical connection standard | EN 175301-803-A |
Enclosure rating IP | IP65 |
EU RoHS compliance | Yes |
EU RoHS exemption clause | No |
Flush diaphragm | No |
High Clipping Level | 22.4 |
In scope of WEEE and contain batteries | No |
Intrinsically safe | No |
Low Clipping level | 3.6 |
Medium temperature range [°C] [max] | 125 °C |
Medium temperature range [°C] [min] | -40 °C |
Medium temperature range [°F] [max] | 257 °F |
Medium temperature range [°F] [min] | -40 °F |
Non-linearity BFSL [±FS%] | 0.2% |
Output signal | Current |
Output signal [mA] [max] | 20 mA |
Output signal [mA] [min] | 4 mA |
Overload pressure max. [bar] | 150 bar |
Pressure connection HEX [mm] | 27 mm |
Pressure connection size | 1/4 |
Pressure connection standard | DIN 3852-E ISO 1179-2 (Form E) |
Pressure connection type | G |
Pressure Male/Female | Male |
Pressure range [bar] [max] | 16 bar |
Pressure range [bar] [min] | 0 bar |
Pressure range [psi] [max] | 232.06 psi |
Pressure range [psi] [min] | 0 psi |
Pressure reference | Gauge (relative) |
Product group | Sensors |
Product Name Description | Pressure transmitter |
Pulse-snubber | Yes |
Quantity per packing format | 14 pc |
REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
Response time max. [ms] | 4 ms |
Specification key | MBS 3250-2211-A1GB04-1 |
Supply voltage [V] DC [max] | 32 V |
Supply voltage [V] DC [max] | 32 V |
Supply voltage [V] DC [min] | 9 V |
Supply voltage [V] DC [min] | 9 V |
Type | MBS 3250 |
UK RoHS compliance | Yes |

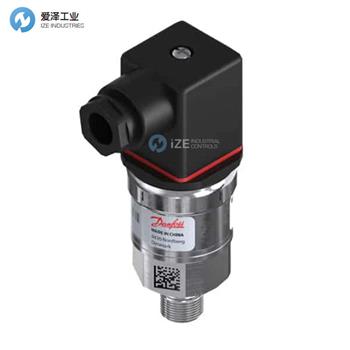

DANFOSS壓力變送器MBS3250 060G1864產品介紹
壓力變送器，MBS 3250，0.00 bar - 16.00 bar，0.00 psi - 232.06 psi
060G1864
壓力參考: 表壓（相對）,
輸出信號: 電流,
電氣連接: 角形連接器,
壓力連接類型: G,
壓力連接尺寸: 1/4,
規格型號: MBS 3250-2211-A1GB04-1
Pressure transmitter, MBS 3250, 0.00 bar - 16.00 bar, 0.00 psi - 232.06 psi
060G1864
Pressure reference: Gauge (relative),
Output signal: Current,
Electrical connection: Angular connector,
Pressure connection type: G,
Pressure connection size: 1/4,
Specification key: MBS 3250-2211-A1GB04-1
