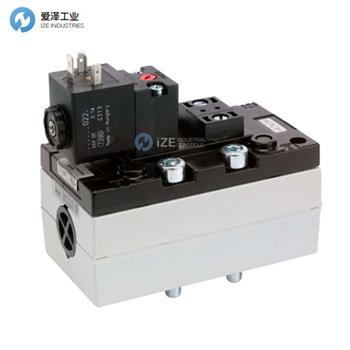

AVENTICS方向閥5813170650技術參數
Specifications | |
Activation | Electrically |
Nominal flow Qn | 4800 l/min |
Switching principle | 5/2, with spring return |
Compressed air connection output | Base plate ISO 5599-1 |
Min. working pressure | 3 bar |
Max. working pressure | 10 bar |
Operational voltage DC | 24 V |
Voltage tolerance DC | -10% / +10% |
Manual override | with detent, without detent |
Electrical connection type | Plug |
Electrical connection size | EN 175301-803, form A |
Actuating control | Single Solenoid |
Sealing principle | Soft seal |
Pilot | Internal |
Standards | ISO 5599-1 |
Pilot valve width | 30x22 mm CNOMO |
Valve type | Spool valve |
Blocking principle | Single base plate principle |
Connection type | Plate connection |
Return | With spring return |
Compressed air connection input | Base plate ISO 5599-1 |
Compressed air connection, exhaust | Base plate ISO 5599-1 |
Compressed air connection pilot exhaust | M5 |
Power consumption DC | 2 W |
Flow conductance C | 18.9 l/(s*bar) |
AVENTICS方向閥5813170650產品介紹
標準化閥門系統
ISO 尺寸 1 至 4 可供選擇
堅固的設計
集成排氣節流閥
多種電壓范圍
壓力范圍可達 16 bar
CNOMO接口
尺寸小
快速換檔時間
通過在線配置器輕松靈活地定制特定配置
Standardized valve system
ISO size 1 to 4 available
Robust design
Integrated exhaust throttles
Numerous voltage ranges
Pressure range up to 16 bar possible
CNOMO interface
Small dimensions
Fast shifting times
Easy and flexible custom specific configurations via online configurator
AVENTICS方向閥5813系列其他常用型號：
AVENTICS 5813170650
AVENTICS 5813170450
AVENTICS 5813171650
AVENTICS 5813171450
AVENTICS 5813172650
AVENTICS 5813172450
AVENTICS 5813173650
AVENTICS 5813173450
