ATOS驅動器E-MI-AC系列技術參數
MAIN CHARACTERISTICS | |
Power supply | Nominal: +24 VDC Rectified and filtered: VAMS = 21 ÷ 33 VMAX (ripple max 10 % VPP) |
Max power consumption | 50 W |
Current supplied to solenoid | IMAX= 2,7 A type PWM square wave (with solenoid type ZO(R)-A with resistance 3,2 Ω) |
Nominal reference signal (factory preset) | 0 ÷ 10 VDC |
Reference signal variation range (scale adjustment) | 0 ÷ 10 VDC (0 ÷ 5 VMIN) (0 ÷ 20 mA for current signal) |
Input signal impedence | Voltage signal Ri > 50 kΩ (Ri = 250 2 for current signal) |
Potentiometers supply | +5 V/10 mA at contact 3 |
Ramp time | 10 sec. max (0 ÷ 10 V of reference signal) |
Format | Box equipped with DIN 43650-IP65 plug; VDE 0110 wired on solenoid |
Operating temperature | 0 ÷ +50 °C (storage -20 ÷ +70 °C) |
Mass | 190 g |
Additional characteristics | Outputs to solenoids protected against accidental short circuits |
Compliance | CE according to EMC directive 2014/30/EU (Immunity: EN 61000-6-2; Emission: EN 61000-6-4) |
Connections | 7 contacts terminal strip |
Recommended wiring cable | LIYCY shielded cables: 0,5 mm2 up to 1,0 mm2 (20 AWG-18 AWG) |

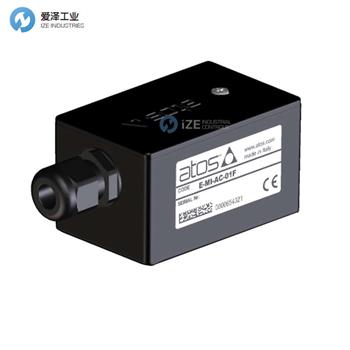

ATOS驅動器E-MI-AC系列介紹
E-MI-AC 模擬驅動器無需壓力或 LVDT 位置傳感器即可控制 Atos 比例閥電磁閥的電流，根據電子參考信號調節閥芯位置、流量或壓力。
特征：
? 通過電位器進行偏置和比例調節
? 對稱（標準）或不對稱（/RR 選項）上升和下降斜坡發生器
? 工廠預設
? 鋁制箱體，防護等級IP65
? 輸入和輸出線上的電子濾波器
? 符合 EMC 指令的 CE 標志
E-MI-AC Analog drivers control the current to the solenoid of Atos proportional valves without pressure or LVDT position transducer, regulating the spool position, the flow or the pressure according to the electronic reference signal.
Features:
? bias and scale regulations by potentiometers
? symmetrical (standard) or dissymmetrical (/RR option) rising and falling ramp generator
? factory pre-set
? alluminium box with IP65 protection degree
? electronic filters on input and output lines
? CE mark according to EMC directive

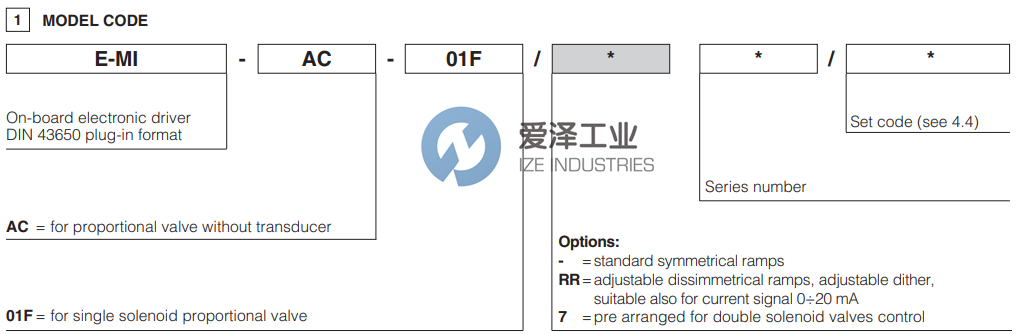

ATOS驅動器E-MI-AC系列選型
ATOS驅動器E-MI-AC系列其他常用型號：
ATOS E-MI-AC-01F
ATOS E-MI-AC-01F-11/2
ATOS E-MI-AC-01F 20-1/3/6
ATOS E-MI-AC-01F 21/2
ATOS E-MI-AC-01F/2
ATOS E-MI-AC-01F/RR
ATOS E-MI-AC-01F/RR 21 / 2
