LMI控制器DR5000系列技術參數
Enclosure | |
NEMA 12X Type (prewired version) | Hard wiring makes the unit suitable for NEMA 4X applications |
Material | Housing Flame retardant, molded TPE |
Cover - Clear molded polycarbonate, padlockable | |
Environment | 32° F to 122° F (0° C to 50° C) |
0% to 95% relative humidity (non-condensing) | |
Electrical | |
Input | 115 VAC, 50/60 Hz or 230 VAC, 50/60 Hz |
Control Output (On/Off) | Five (5) relays, 10 Amp @ 115 VAC, 5 Amp @ 230 VAC, Unit fused for 10 Amp total load |
Control Output (Proportional) | Pulse output signal (100ms pulse width), open collector |
Alarm Output | Switch closure, 2 relays, 10 Amp @ 115 VAC (5 Amp @ 230 VAC) 1 relay for pump A, 1 relay for pump B |
Signal Input | BNC type |
Data Output | 4-20 mA spanning the ORP range |
Operational | |
Display | Custom multiline backlit LCD |
ORP Scale | ± 2,000 millivolts |
Limit Timers | Adjustable 0-11 hours |
Differential (hysteresis) | Keypad adjustable |
LMI控制器DR5000系列介紹

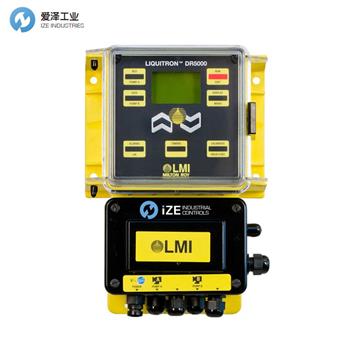

Liquitron DR5000 是一款雙通道 ORP（氧化還原）控制器，提供繼電器或比例脈沖輸出來驅動化學計量泵。 定制背光顯示屏提供有關控制器和系統狀況的持續信息。
高低報警點、延遲和限制定時器以及其他用戶可編程功能使 DR5000 成為更具適應性的 ORP（氧化還原）控制器。
特征
? 定制背光液晶顯示屏
? 高低設定點
? 每個輸出的限制定時器
? ±2000 mV 刻度
? ORP 可編程響應延遲
? 4–20 mA 輸出（可選）
? 標準比例脈沖或繼電器輸出
The Liquitron DR5000 is a dual-channel ORP (redox) Controller providing either relay or proportional pulse outputs to drive chemical metering pumps. A custom backlit display provides constant information regarding controller and system conditions.
High and low alarm points, delay and limit timers, and other user programmable features make the DR5000 the most adaptive ORP (redox) Controller available.
Features
? Custom Backlit LCD Display
? High and Low Set Points
? Limit Timers for Each Output
? ±2000 mV Scale
? ORP Programmable Response Delay
? 4–20 mA Output (Option)
? Proportional Pulse or Relay Output both Standard
LMI控制器DR5000系列其他常用型號：
LMI DR5000-2B1
LMI DR5000-1B1
LMI DR5000-2B0
LMI DR5000-1C1
LMI DR5000-2A1
LMI DR5000-1A0
LMI DR5000-2C0
LMI DR5000-2C1
LMI DR5000-1A1
LMI DR5000-1B0
LMI DR5000-2A0
LMI DR5000-1C0
LMI DR5000-6B-1
LMI CONTROLLER NEW + ORIGINAL+ ONE YEAR WARRANTY
