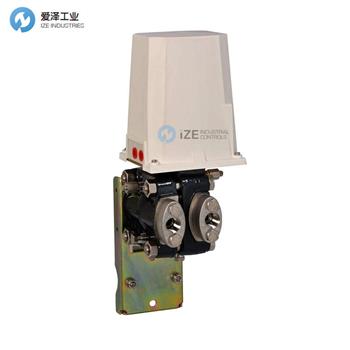

SPRIANO差壓變送器SG76-XC01A211A0是SG74-XCB021024的停產替代型號
SPRIANO差壓變送器SG76-XC01A211A0技術參數
SG76 PNEUMATIC DP TRANSMITTER PZ |
XC - Body Material: SS A351 CF3M |
01 - Diaphragm: AISI 316 L, Core: AISI 316 L, Filling: Silicone oil Diameter: 3’’ Span Limits: 5 ÷ 52 KPa |
A - Gaskets: PTFE |
2 - Bolts and Nuts: AISI 316 Class A4-70 ISO 3506 NACE MR0175 |
1 - Process connection / Supply: 1/2" NPT F |
1 - Output signal: 0.2 ÷ 1 Kg/cm2 |
A - Options: Without options |
0 - Options: Without options |
Max static pressure: 100 bar |
SPRIANO差壓變送器SG76系列介紹
SG76采用力平衡原理工作，由兩個主要單元組成： 檢測壓差變化的測量單元，由兩個鍛造體和一個測量盒組成。 傳輸單元將施加到測量元件上的差力轉換成比例輸出氣動信號。 由擋板噴嘴繼電器產生的輸出壓力以不斷上升的壓力供給反饋波紋管，直到波紋管力和測量元件之間達到平衡。 整個傳輸單元包含在防水外殼內。
The SG76 works on the force balance principle and consists of two main units: The measuring unit which detects the differential pressure variation and consists of two forged bodies and a measuring capsule. The transmission unit converts the differential force applied to the measuring element into a proportional output pneumatic signal. The output pressure, generated by a flapper nozzle relay, feeds the feedback bellows with a rising pressure until the balance between bellows force and measuring element is reached. The whole transmission unit is contained within a water-resistant housing.

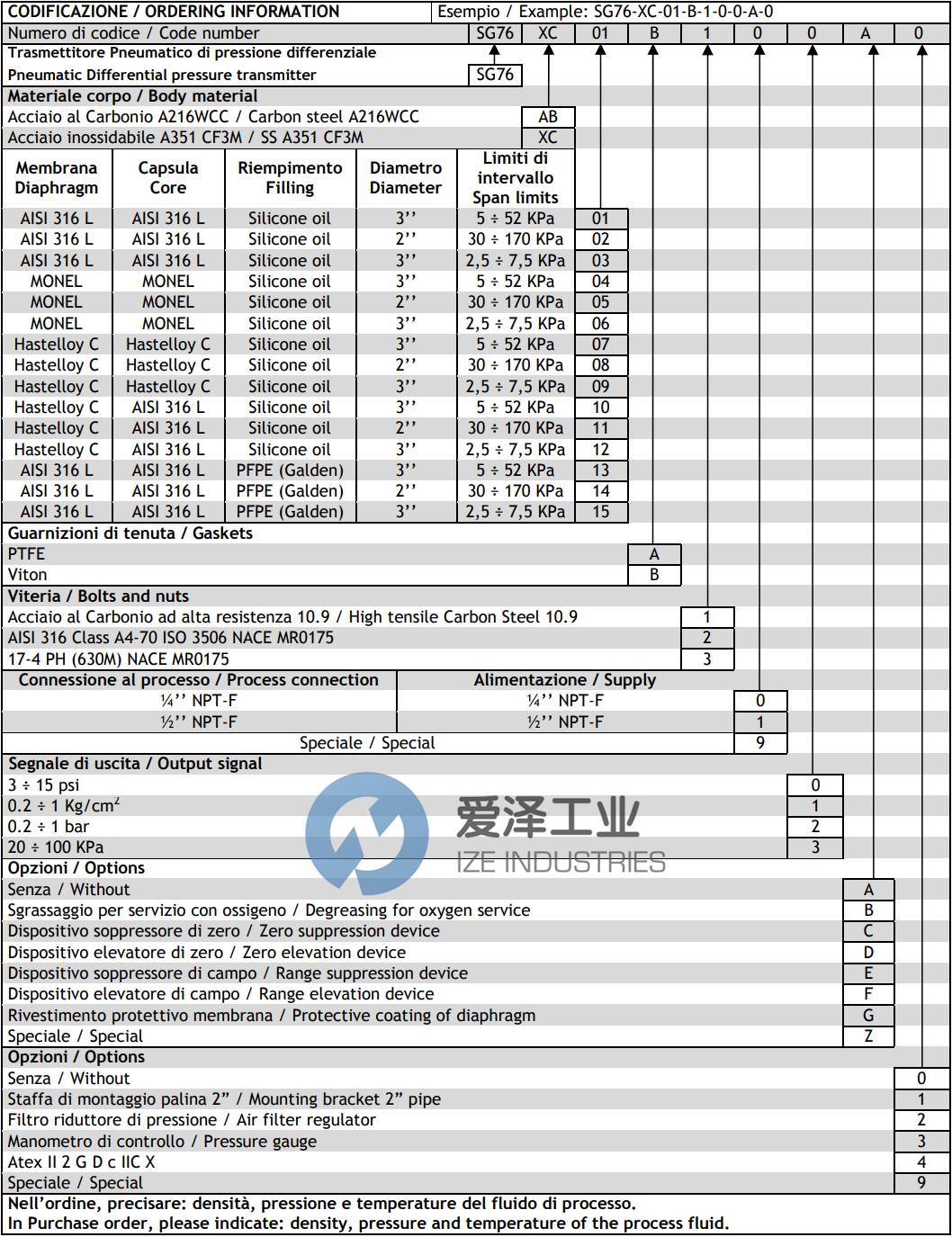

SPRIANO差壓變送器SG76系列選型
SPRIANO差壓變送器SG76系列其他常用型號：
SPRIANO SG76-XC01A211A0
SPRIANO SG76-XC01B100A0
SPRIANO SG74-XCB021024
SPRIANO PRESSURE TRANSMITTER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SPRIANO差壓變送器SG76-XC01A211A0的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SPRIANO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website:www.wap.pnxqid.cn.
SPRIANO差壓變送器SG76系列SG76-XC01A211A0技術參數及選型
