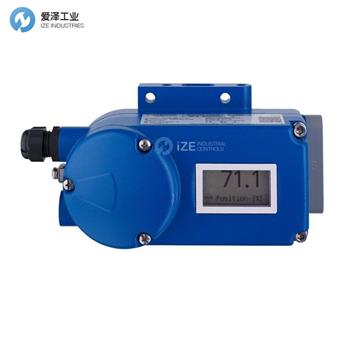

FOXBORO定位器SRD998-HAD1-C1S-1SA37-ZZ技術規格
SRD998 |
H-HART |
AD-Advanced Diagnostics |
1-Universal In-Out Option |
C-Double Acting |
1-Standard Flow - High Performance Pneumatic (10 bar max air supply) |
S-Fail safe |
1-Aluminum |
S-Standard |
A-1/4 NPT |
3-With 3 standard gauges for double acting (b) |
7-M20x1.5 |
ZZ-without certification |
FOXBORO定位器SRD998系列介紹
The intelligent positioner SRD998 is designed to operate pneumatic valve actuators and can be operated from control systems (e.g. the I/A Series System and Evo?), controllers or PC-based configuration and operation tools such as the FDT/DTMs VALcare?. The positioner is available with HART 7 Communication Protocol. The extra large multi-lingual full text graphical-LCD, in conjunction with the rotary selector, allows a comfortable and easy local configuration and operation. For installations in contact with explosive atmospheres certificates are available.
FEATURES
Auto-start with self-calibration
Self diagnostics, status and diagnostic messages
DTM for valve diagnostics and predictive maintenance
Easy local operation with the rotary selector
Extra large multi-lingual full text graphical LCD. SRD998 AD model with backlight.
With HART 7 communication
Stroke 8 to 260 mm (0.3 to 10.2 in) with standard lever; larger stroke with special lever
Angle range up to 95° (up to 120° on request)
Mounting onto any linear or rotary actuator
Supply air pressure up to 10 bar (145 psig)
Single or double acting
Protection class IP 66
Explosion protection: Intrinsic Safety according to ATEX/IECEx, INMETRO, NEPSI, PESO, CNS, EAC, KCs, and TIIS
智能定位器 SRD998 設計用于操作氣動閥門執行器，可以通過控制系統（例如 I/A 系列系統和 Evo?）、控制器或基于PC的配置和操作工具（例如 FDT/DTM VALcare?）進行操作。該定位器支持 HART 7通信協議。超大的多語言全文圖形 LCD 與旋轉選擇器相結合，可實現舒適、輕松的本地配置和操作。對于接觸爆炸性環境的安裝，可提供證書。
特征
自動啟動并進行自校準
自診斷、狀態和診斷消息
用于閥門診斷和預測性維護的DTM
使用旋轉選擇器輕松進行本地操作
超大多語言全文圖形液晶顯示屏。 SRD998 AD 型號帶背光。
具有HART 7通訊
帶標準杠桿的行程為 8 至 260 毫米（0.3 至 10.2 英寸）； 帶特殊杠桿的更大行程
角度范圍高達95°（根據要求高達 120°）
安裝到任何線性或旋轉執行器上
供氣壓力高達 10 bar (145 psig)
單作用或雙作用
防護等級 IP 66
防爆：本質安全符合 ATEX/IECEx、INMETRO、NEPSI、PESO、CNS、EAC、KCs 和 TIIS
FOXBORO定位器SRD998系列其他常用型號：
FOXBORO SRD998-HAD1-C1S-1SA37-ZZ
FOXBORO SRD998-HAD1-B1S-1SA17-ZZ
FOXBORO SRD998-HBD0-B0S-1SA07-A1
