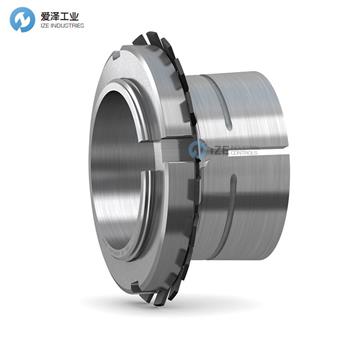

SKF轉接套OH2356H規格尺寸
| d1 | 260 mm | Bore diameter |
d | 280 mm | Outside diameter small taper | |
d3 | 350 mm | Outside diameter lock nut | |
B1 | 224 mm | Width | |
B | 38 mm | Width lock nut | |
B4 | 41 mm | Width lock nut including lock washer | |
G | Tr 280x4 | Thread | |
G2 | M 6 | Thread oil supply duct | |
G3 | 9 mm | Length thread for oil supply duct | |
A | 6.5 mm | Distance bore - oil supply duct |
SKF轉接套其他常用型號：
SKF H2311
SKF H311
SKF H311E
SKF H212
SKF H2312
SKF H312
SKF H312E
SKF H213
SKF H2313
SKF H2313E
SKF H2314
SKF OH2356H
SKF H2356
SKF Adapter sleeves NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SKF轉接套OH2356H的疑問，請隨時致電我們，愛澤工業（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SKF products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website: www.wap.pnxqid.cn.
