SJOGREN制動器SMB-1.25M技術參數
MODEL | SMB-1.25 M |
TORQUE RANGE | 0.6-1.25 in-lb |
MAX. RPM AT MIN. TORQUE | 2000 rev/min |
MAX. RPM AT MAX. TORQUE | 800 rev/min |
MAX. MOMENT ON SHAFT | 40 in-lb |

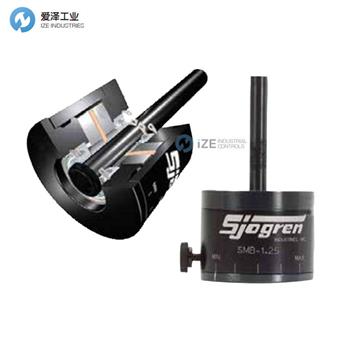

SJOGREN制動器SMB系列介紹
Sjogren磁滯制動器用于在卷繞、退繞、張緊或其他類似機器操作期間提供受控張力或扭矩。 無論轉速如何，堅固的制動器都能提供恒定的扭矩。 即使直徑發生變化，它們也能確保平穩啟動和均勻運動。 制動器根據永磁雙盤磁滯原理運行。 裝置可用于動力系統過載保護。 這種磁鐵技術不需要外部電源，并且?guī)缀鯚o(wú)需維護且無磨損。
集成的秤可以輕松調整和重復設置。 可以定制設計模型。 磁滯制動器可帶或不帶反饋控制。 反饋控制通過搖臂進行操作，搖臂跟隨退繞線軸改變其直徑，從而自動減小扭矩設置。 自動減小扭矩設置將在放線期間保持從滿線軸到空線軸的恒定線張力。
The Sjogren hysteresis brakes are used to provide controlled tension or torque during spooling, unwinding, tightening or other similar machine operations. The rugged brakes provide constant torque regardless of the rotation speed. They ensure smooth startup and uniform movements even as the diameters change. The brakes operate according to the principle of permanent magnetic dual disks hysteresis. Units can be used for powertrain overload protection. This magnet technology does not require an external power supply and is virtually maintenance and wear-free.
An integrated scale makes it easy to adjust and repeat the settings. Custom designed models are possible. The hysteresis brakes are available with and without feedback control. The feedback control operates via a rocker arm which follows the unwinding spool for changes to its diameter and thereby automatically decreases the torque setting. Reducing the torque setting automatically will maintain a constant line tension from full to empty spool during payoff.

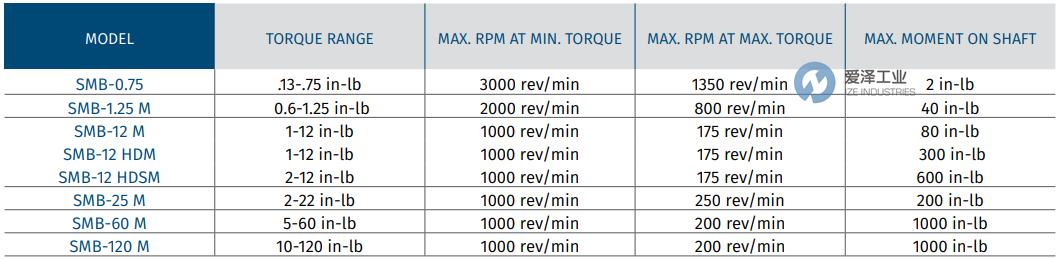

SJOGREN制動器SMB系列選型
SJOGREN制動器SMB系列其他常用型號：
SJOGREN SMB-0.75
SJOGREN SMB-1.25M
SJOGREN SMB-12M
SJOGREN SMB-12HDM
SJOGREN SMB-12HDSM
SJOGREN SMB-25M
SJOGREN SMB-60M
SJOGREN SMB-120M
SJOGREN HYSTERESIS BRAKES NEW + ORIGINAL+ ONE YEAR WARRANTY
