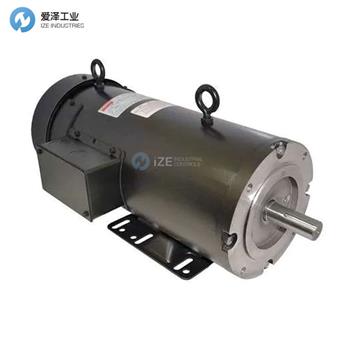

DAYTON電機2M509A產品參數
Specification | |
Item | DC Permanent Magnet Motor |
Motor Application | Variable Speed |
Motor Design | DC Permanent Magnet |
HP | 1/3 |
Motor Enclosure Design | Totally Enclosed Fan-Cooled |
Nameplate RPM | 1750 |
Voltage | 90VDC |
Full Load Amps | 3.5 |
Frame | 56C |
Motor Mounting Type | Face/Base |
Motor Thermal Protection | None |
Ins. Class | F |
Bearings | Ball |
Max. Ambient Temp | 40 Degrees C |
Rotation | CW/CCW |
Overall Length | 11-5/16" |
Shaft Dia. | 5/8" |
Shaft Length | 1-7/8" |
Features | 3/8" Diameter Hole 1/2" Deep, Drilled On Opposite Drive Shaft to Accommodate Tach Mounting Kit, Removable Base, #10-32 Adapter |
Standards | UL Recognized (E47479) |
DAYTON電機2M509A產品介紹
永磁電機設計用于恒定或遞減鏈應用中的速度控制器或NEMA K 600型電源。
Permanent magnet motor is designed for use with speed controls or NEMA Type K DC power supplies on constant or diminishing torque applications.
DAYTON電機2M509A其他常見型號：
DAYTON 3XE19
DAYTON 3XE20
DAYTON 4Z529
DAYTON 4Z144
DAYTON 3LCH7
DAYTON 6MK99
DAYTON 6ML04
DAYTON 4Z525
DAYTON 6ML01
DAYTON 2M168A
DAYTON DC Permanent Magnet Motor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DAYTON電機2M509A的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DAYTON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website:www.wap.pnxqid.cn.
