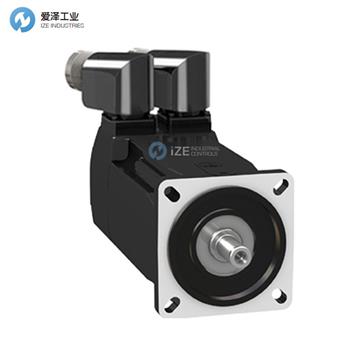

SCHNEIDER伺服電機BMH1003P06A2A技術規格
range compatibility | Lexium 32 |
[Us] rated supply voltage | 480 V |
network number of phases | Three phase |
continuous stall current | 7.69 A |
continuous power | 3.3 W |
maximum current Irms | 29.1 A for LXM32.D30N4 |
maximum permanent current | 29.1 A |
second shaft | Without second shaft end |
shaft diameter | 19 mm |
shaft length | 40 mm |
feedback type | Single turn SinCos Hiperface |
motor flange size | 100 mm |
number of motor stacks | 3 |
torque constant | 1 N.m/A at 120 °C |
back emf constant | 63.5 V/krpm at 120 °C |
number of motor poles | 10 |
rotor inertia | 9.37 kg.cm2 |
stator resistance | 0.63 Ohm at 20 °C |
stator inductance | 4 mH at 20 °C |
stator electrical time constant | 6.3 ms at 20 °C |
maximum radial force Fr | 1050 N at 1000 rpm |
maximum axial force Fa | 0.2 x Fr |
type of cooling | Natural convection |
length | 192.6 mm |
centring collar diameter | 95 mm |
centring collar depth | 3.5 mm |
number of mounting holes | 4 |
mounting holes diameter | 9 mm |
circle diameter of the mounting holes | 115 mm |
net weight | 6.5 kg |
SCHNEIDER伺服電機BMH系列其他常用型號：
SCHNEIDER BMH1003P11A1A
SCHNEIDER BMH1003P11A2A
SCHNEIDER BMH1003P37A2A
SCHNEIDER BMH1003P26A1A
SCHNEIDER BMH1003P17A2A
SCHNEIDER BMH1003P06F2A
SCHNEIDER BMH1003P21A2A
SCHNEIDER BMH1003P32A2A
SCHNEIDER BMH1003P36F2A
SCHNEIDER BMH1003P06A2A
SCHNEIDER BMH1003P26A2A
SCHNEIDER BMH1003P12A1A
SCHNEIDER BMH1003P16A2A
SCHNEIDER BMH1003P31A2A
SCHNEIDER servo MOTOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SCHNEIDER伺服電機BMH1003P06A2A的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for SCHNEIDER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website: www.wap.pnxqid.cn.
SCHNEIDER伺服電機BMH1003P06A2A技術參數
