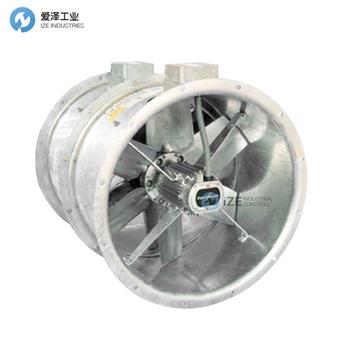

FLAKTWOODS風機JM系列產品參數
Features |
? 400 - 630 mm diameter |
? Volume up to 25,920 m3/h (7.2 m3/s) |
? Static pressures up to 1000 Pa |
? Fans tested to ISO5801 and BS848 |
? High energy efficiency |
? Low installed noise levels |
? Motor protection IP55 |
? Overheat protection fitted as standard |
Electrical Supply |
? 220-240V/50Hz/1φ |
? 380-420V/50Hz/3φ |
Temperature Range |
? -40oC to 50oC as standard |
? BT or CT motors can be continuously operated at temperatures up to 70oC |
FLAKTWOODS風機JM系列產品介紹
獨特的高效翼型型截面刀片，具有經過精心設計的平滑輪轂和壓板，可調節俯仰角。
Fl?ktWoods葉輪均采用高壓壓鑄成型，以提供較薄的翼型截面，從而降低了噪音。在組裝之前，使用實時放射線照相術對每個鑄鋁部件進行X射線檢查。
A unique high efficiency aerofoil section blade with a purposely smoothed hub and clamp plate for adjustable pitch angle availability.
The Fl?kt Woods impellers are all high pressure die cast to offer thin aerofoil sections for low generation of noise. Every cast aluminium component is X-ray examined using Real Time Radiography prior to assembly.
FLAKTWOODS風機JM系列其他常見型號：
FLAKTWOODS 50JM2/20/2/6/20/16
FLAKTWOODS 50JM2/20/2/6/30/24
FLAKTWOODS 50JM2/20/4/6/41/32
FLAKTWOODS 56JM2/20/4/6/33/26
FLAKTWOODS 56JM2/20/4/6/40/32
FLAKTWOODS 50JM2/20/2/6/20/16
FLAKTWOODS 50JM2/20/2/6/30/24
FLAKTWOODS 50JM2/20/4/6/41/32
FLAKTWOODS Fans NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FLAKTWOODS風機50JM2/20/2/6/28/22的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for FLAKTWOODS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website:www.wap.pnxqid.cn.
FLAKTWOODS風機50JM2/20/2/6/28/22產品參數
