CINCINNATI FAN風機PB-10A技術參數
ACFM | 788 |
SP | 1.0 in. wg |
Temp. | 70°F |
Altitude | 0 ft. ASL |
Density | 0.075 lb/ft3 |
Fan RPM | 2850 |
BHP | 1.2 |

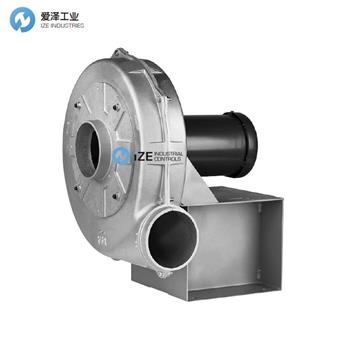

CINCINNATI FAN風機PB-10A產品介紹
Arrangement 4, 6" Inlet, CW Rotation, TH Discharge, 12-1/4 x 2-7/8
MTR, 1/4 HP,1425/1750 RPM,3PH,50/60Hz, 190-220/380-415//230/460, TEFC, Div 2, Class I, Groups A,B,C,D, Std Eff, FM, 56, IP55,1.15 SF,F Insul., 40C Amb., Tropicalized for Storage, Shielded Bearings, F1 Box, Steel frame, CSA, UL, VFD Capable 1000:1 VT, 1/4 HP, IE2, 1.15 SF @ 50 HZ.
Discharge Slide Gate Damper, Aluminum Gate
CINCINNATI FAN風機PB系列介紹
鑄鋁離心鼓風機外殼和葉輪對于設計師和制造商來說是自然的事。
AMCA B 型火花阻隔是標準配置。AMCA A 型也很容易獲得。
自清潔徑向葉輪。
八種外殼尺寸、多種入口和葉輪尺寸允許輕松選擇具有八十七種直接驅動性能等級的直接驅動鼓風機。
圓形入口和出口可通過滑動連接或法蘭輕松連接到標準管道或風管尺寸。這也允許輕松進行柔性軟管連接。
8 單元布置標配軸/聯軸器護罩。
9 單元布置標配皮帶護罩。
Cast aluminum centrifugal blower housings and wheels are natural for designers and manufacturers.
AMCA Type B spark resistance is standard. AMCA Type A is also easily available.
Self-cleaning radial wheels.
Eight housing sizes, multiple inlet and wheel sizes allow an easy selection of direct driven blowers with eighty-seven lines of direct drive performance ratings.
Round inlets and discharges easily connect to standard pipe or duct sizes with slip connections or flanges. This also allows for easy flexible hose connections.
Arrangement 8 units come standard with shaft/coupling guards.
Arrangement 9 units come standard with belt guards.
CINCINNATI FAN風機PB系列其他常用型號：
CINCINNATI FAN PB-8
CINCINNATI FAN PB-9
CINCINNATI FAN PB-10A
CINCINNATI FAN PB-12A
CINCINNATI FAN PB-13A
CINCINNATI FAN PB-14A
CINCINNATI FAN PB-15A
CINCINNATI FAN PB-18
CINCINNATI FAN PB-18-A
CINCINNATI FAN PB-18WA
