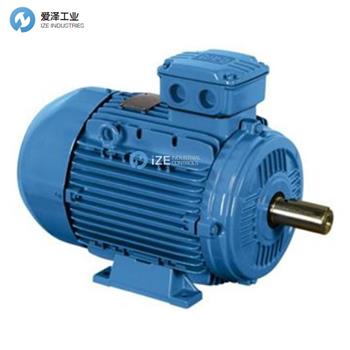

WEG電機W21-315S/M-02產品參數
Specification | |
Standard | IEC 60034-1 |
Frequency | 50 Hz |
Voltage | 380-415/660//440-460 V |
Number of poles | 2 |
Degree of Protection | IP55 |
Synchronous speed | 3000 rpm |
Output rating | 132 kW |
Mounting | Foot-mounted |
Flange | Without |
Mounting | B3T |
Terminal box1 | Top |
Enclosure | IC411 - TEFC |
Frame | 315S/M |
Output | 132 kW |
Number of Poles | 2 |
Frequency | 50 Hz |
Rated speed | 2978 rpm |
Slip | 0.0073 |
Rated voltage | 400/690 V |
Rated current | 225/130 A |
L. R. Amperes | 1845/1070 A |
LRC | 8.2 |
No load current | 60.0/34.8 A |
Rated torque | 43.2 kgfm |
Locked rotor torque | 2.2 |
Breakdown torque | 2.8 |
Locked rotor time | 57s (cold) 32s (hot) |
Moment of inertia (J) | 1.62 kgm2 |
Design | N |
Insulation Class | F |
Service factor | 1 |
Temperature rise | 80 K |
Duty Cycle | S1 |
Starting Method | Direct On Line |
Ambient temperature | -20°C to +40°C |
Altitude | 1000 m.a.s.l. |
Degree of Protection | IP55 |
Enclosure | IC411 - TEFC |
Mounting | B3T |
Rotation1 | Both (CW and CCW) |
Noise level2 | 83.0 dB(A) |
Approx. weight3 | 1072 kg |
Frame Material | Cast Iron |
Impregnation Method | Constant Resin Flow |
Regreasing System | At Drive end and Non-drive end |
Main terminal box hole | 2xM63x1,5 |
Terminal Block | Exd Connection Pins |
Shaft Material | SAE 1040/45 Carbon Steel |
Painting | RAL 5009 202P (ISO 12944 - C4) |
Grounding Lugs | Double |
Fan Cover material | Cast Iron |
Tropicalized Painting | Without |
Fan material | Aluminum |
Bearing cap | Yes- Bearing Cap |
Winding thermal protection | Thermistor - 2 wires 1 per phase 150°C |
Balancing Method | 1/2 Key |
Drip Cover | Without |
Overload protector (phenolic) | Without overload protector |
WEG電機W21系列產品介紹
W21Xd是一款防爆電機，專為在存在爆炸性環境的環境中運行而設計。它具有堅固的結構，一個防火系統以及精心設計的零件之間的間隙，在接線盒上的精確加工以及具有高機械強度的螺釘。它符合1區和2區等爆炸性環境的要求。
W21Xd is an explosion-proof motor especially designed to operate in environments with the presence of explosive atmospheres. It has robust construction, a flame retention system with gaps between the parts carefully designed, accurate machining on the terminal box and screws with high mechanical strength. It meets the requirements of explosive atmospheres like Zone 1 and Zone 2.
