ROSSI減速電機MRV40UO3A規格參數
ESECUZIONE Gear reducer design | UO3A |
MOTORTYPE Motor size | 63 B5 |
I Transmission ratio | 25 |
FC Mounting position | B3 |
Motor type | HB-Standard motor |
Motor size | 63 |
Terminal box position | TB0 |
Power | A |
Poles | 2 |
Motor mounting position | B5 |
AA | 40 |
A | 70 |
B | 62 |
D ? H7 | 24 |
C1 | 57.5 |
D1? | 14 |
E1 | 25 |
F | M6x12 |
G | 87 |
H h11 | 82 |
H0 h11 | 56 |
H1 h12 | 41.5 |
K ? | 9.5 |
L | 12 |
L1 | 10 |
M ? | 85 |
N ? t8/h6 | 68 |
P ? | 105 |
Q | 3 |
T | 106 |
U | 80 |
Z | 46 |
P1 ? | 140 |
X ? | 122 |
Y | 185 |
Y1 | 328 |
W | 101 |
W1 | 171 |
MASS Massa | 11 |
OLIO Oil quantities | 0.26 |

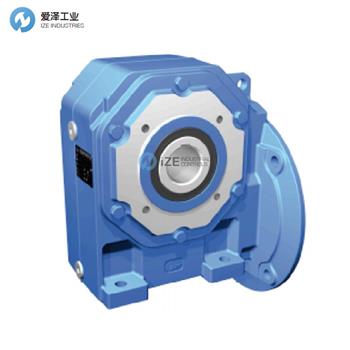

ROSSI減速機MRV系列型號解析及介紹
Product description
Type Right Angle Hollow Shaft(worm gear)
Ratio 13:1
Output speed 108rpm at 1400rpm input speed (4 pole)
Input to suit IEC D71 motor
Suitable for powers 0.25kW; 0.37kW
The largest standard motor that will fit this gearbox is 0.37kW, this governed by the size of the input flange and shaft
Key features
Universal mounting design
Rigid and precise monolithic casing in Cast Iron
Cylindrical worm shaft with ground and super-finished involute profile (ZI)
Load capacity and efficiency to BS 721-83 integrated with ISO/CD 14521
IEC standard motor
Wide range of accessories
Easy and functional shaft-mounting design
Worm wheels of A04 gear reducers and gearmotors made of nickel bronze with controlled phosphor content, in order to achieve improved performance from 6 to 18%, a higher load capacity, greater reliability and more wear resistance
Compliance with ATEX 94/9/EC directive (UT.D 123)
產品描述
類型直角空心軸（蝸輪）
比例13：1
輸入速度1400rpm時輸出速度108rpm（4極）
輸入以適合IEC D71電機
適用功率0.25kW; 0.37千瓦
適用于該變速箱的最大標準電動機為0.37kW，這取決于輸入法蘭和軸的尺寸
主要特征
通用安裝設計
鑄鐵的剛性和精密整體式外殼
圓柱蝸桿軸，具有磨削和漸開線輪廓（ZI）
符合ISO / CD 14521的BS 721-83的負載能力和效率
IEC標準電動機
各種配件
簡單易用的軸安裝設計
A04減速器和齒輪電動機由鎳青銅制成的蝸輪，磷含量受控，以便將性能提高6％至18％，具有更高的負載能力，更高的可靠性和更高的耐磨性
符合ATEX 94/9 / EC指令（UT.D 123）
ROSSI減速機MRV系列其他常用型號：
ROSSI MRV40UO3A
ROSSI MRV100-112M4
ROSSI MRV100-132M6
ROSSI MRV80-112M4
ROSSI MRV81-112M4
ROSSI MRV100-112M4
ROSSI MRV125-112M4
ROSSI MRV200-160L4
ROSSI MRV200-180L6
ROSSI MRV250-160L4
ROSSI MRV250-180L6
ROSSI reducer NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ROSSI減速機MRV40UO3AA的疑問，請隨時致電我們，愛澤工業（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ROSSI products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn/browse our website: www.wap.pnxqid.cn.

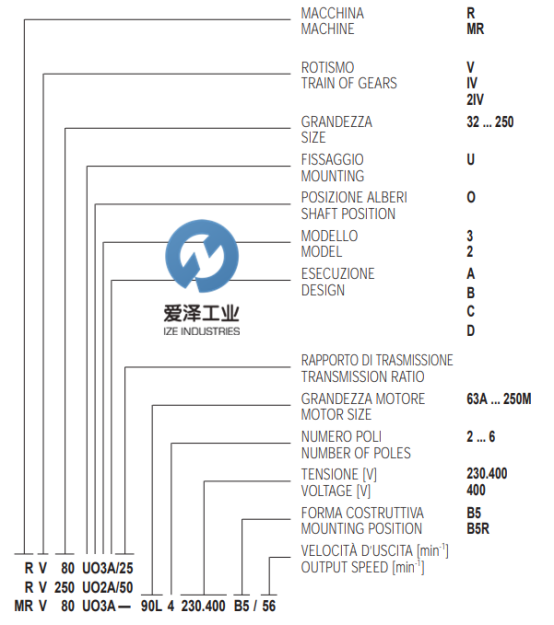

ROSSI減速機MRV系列 MRV40UO3AA型號解析
