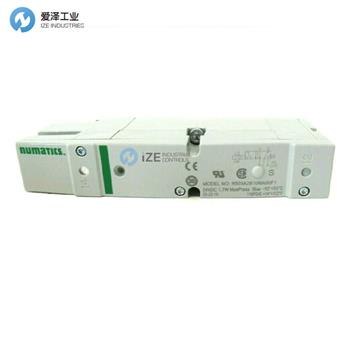

NUMATICS換向閥R503A2B40MA00F1技術參數
Specifications | |
Activation | Electrically |
Nominal flow Qn | 1400 l/min |
Switching principle | 5/2 |
Working pressure | -0.95 bar ~ 8 bar |
Voltage tolerance DC | -15% / +10% |
Actuating control | Double Solenoid |
Sealing principle | Soft Seal |
Pilot | External |
Valve type | Spool valve, positive overlapping |
Connection type | Plate connection |
Return | with differential piston |
Blocking principle | Single base plate principle, can be assembled into blocks |
Can be assembled into blocks | Can be assembled into blocks |
Control pressure | 2 bar ~ 8 bar |
Ambient temperature | -10 °C ~ 50 °C |
Medium temperature | -10 °C ~ 50 °C |
Medium | Compressed air |
Max. particle size | 50 ?μm |
Oil content of compressed air min. | 0 mg/m?3 |
Oil content of compressed air max. | 5 mg/m?3 |
Pilot control exhaust | with directional pilot air exhaust |
NUMATICS換向閥R503A2B40MA00F1產品介紹
提供閥芯套筒或橡膠密封型號
專有和 ISO 版本使閥門能夠滿足各種應用
通過壓力調節器提高能源效率
低功耗（直流應用為 1.7 W）
模塊化設計和插入式電路板，便于配置和消除布線
機器循環率可以通過速度控制進行優化
單個閥門的壓力隔離，便于維護
Available in either spool-and-sleeve or rubber seal models
Proprietary and ISO versions enable the valve to meet a variety of applications
Increased energy efficiency via pressure regulators
Low power consumption (1.7 W for DC applications)
Modular design and plug-in circuit boards for easy configuration and elimination of wiring
Machine cycle rate can be optimized via speed controls
Pressure isolation of individual valves for easy maintenance
NUMATICS換向閥503系列其他常用型號：
NUMATICS R503A1B40MA00F1
NUMATICS R503A1B40M11BF1
NUMATICS R503A2B40M11BF1
NUMATICS R503A2B40MA00F1
