SCHMITZ清洗球RS15 MEDIUM 16MM技術參數

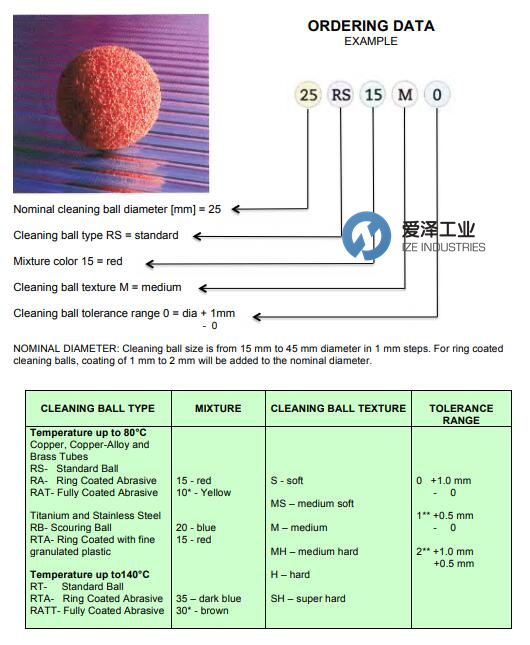

Specifications RS15 MEDIUM 16MM |
RS- Standard Ball |
15 - red |
M – medium |
Nominal cleaning ball diameter [mm] =16 |
SCHMITZ清洗球介紹及選型
Typical applications:
On-line tube cleaning systems operating at temperatures up to 90°C (e.g. steam condensers and heat exchangers in conventional and nuclear power plants and lower temperature MSF units). Other types of ball are available for other applications.
Available forms:
Type RS Sponge Balls are available in a range of standard sizes from 10 to 45 mm diameter, in 1 mm steps.
Each size is available in a standard medium grade of hardness.
Non-standard sizes or hardness’s are available on request.
Chemical composition:
The composition of the balls is based on a natural rubber mixture containing inert filler material. 10-20% of the mixture is vulcanizing agents. The exact mixture has been chosen so as to give the optimum combination of physical properties, ball in life and cleaning effect.
There is no health risk associated with the ball mixtures; all chemicals used are permitted for use in contact with foodstuffs.

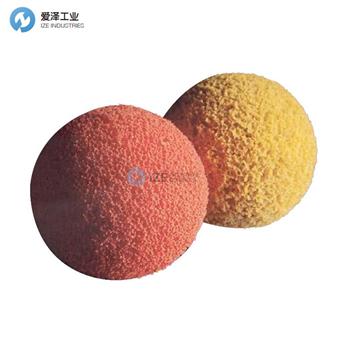

Colour:
The standard colour is red.
Light ball colour is yellow.
Sinking– and watering characteristics:
Immediately prior to use the balls are watered by squeezing them under water in the ball vessel about to 3 to 4 times to expel air.
To ensure that all tubes are cleaned, the watered balls should have a specific gravity close to that of the cooling medium.
They have a sinking velocity of:
Standard ball:– 8-12 cm/sec.
Light ball:– 1-4 cm/sec.
典型應用：
在線管道清潔系統，可在高達90°C的溫度下運行（例如常規和核電廠中的蒸汽冷凝器和熱交換器以及低溫MSF裝置）。其他類型的球可用于其他應用。
可用形式：
RS海綿球的標準尺寸范圍為直徑10到45 mm，以1 mm為步長。
每種尺寸都有標準的中等硬度等級。
可根據要求提供非標準尺寸或硬度。
化學成分：
球的組成基于含有惰性填料的天然橡膠混合物?；旌衔锏?0-20％為硫化劑。選擇了確切的混合物，以使物理性能，使用壽命和清潔效果達到最佳組合。
球混合物沒有健康風險；允許所有使用的化學品與食品接觸。
顏色：
標準顏色是紅色。
淺色球?yàn)辄S色。
下沉和澆水特性：
在即將使用之前，將球在球容器中的水下擠壓約3至4次以排出空氣，從而對球進行澆水。
為了確保清潔所有管道，澆水球的比重應接近冷卻介質的比重。
它們的下沉速度為：
標準球：– 8-12厘米/秒。
輕球：– 1-4厘米/秒。
SCHMITZ清洗球其他常用型號：
SCHMITZ 25RS15M0
SCHMITZ 16RS15M0
SCHMITZ RS15 MEDIUM 16MM
