SKF齒輪泵單元MFE系列技術參數
TECHNICAL DATA | ||
Function principle | Electrically operated gear pump | |
Lubricant | mineral oil or synthetic oil, 20 to 850 mm2/s | |
Number of lubricant outlets | 1 | |
Metering quantity | 350-500 cm3/min | 15-31 in3/min |
Operating temperature | -10 to +60 °C | +14 to 140 °F |
Back pressure | max. 17,5; 28 bar | max. 255; 405 psi |
Capacity of the reservoir | 3; 6 or 15 l | 0.8, 1.6 or 4 gal |
Material (reservoir) | plastic, metal | |
Connection outlet | M 14x1.5 | |
Protection class | IP 54 | |
Mounting position | vertical | |
SKF齒輪泵單元MFE系列產品介紹
包含MFE系列的齒輪泵單元旨在提供間歇運行的單線潤滑系統中使用的潤滑劑?；驹O(shè)置包括帶有電機的齒輪泵單元，3升或6升的金屬或塑料潤滑劑儲罐或15升的金屬儲罐。浮動開關可用于監控潤滑劑的最低允許水平。除基本型號外，設備還可配備附加組件。
特點和優點
集成浮球開關，用于料位監控
集成式泄壓閥和調壓閥
電機適用于各種電壓范圍和認證
提供適用于廣泛應用的特殊設計
適用于間歇操作
用于從儲罐外部安裝或內置儲罐
可靠且用途廣泛

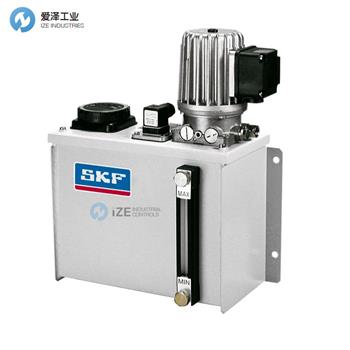

The gear pump units comprising the MFE series are designed to supply lubricant used in intermittently operated, single-line lubrication systems. The basic setup includes a gear pump unit with motor, a 3- or 6 l lubricant reservoir in metal or plastic, or a 15 l metal reservoir. A float switch can be used to monitor the minimum permissible level of lubricant. In addition to the basic models, units can be outfitted with add-ons.
Features and benefits
Integrated float switch for fill-level monitoring
Integrated pressure-relief valve and pressure-regulating valve
Motors available for various voltage ranges and approvals
Special designs offered for a wide range of applications
Suitable for intermittent operation
For remote installation out of reservoir or for built-in reservoir
Reliable and versatile
SKF齒輪泵單元MFE系列其他常用型號：
SKF MFE5-KW3-S37+1GD
SKF MFE5-KW6+299
SKF MFE5-BW3-2+299
SKF MFE5-BW3-S41+MPG
SKF MFE5-BW7-S107+MPG
SKF MFE5-BW16-S145+1GD
SKF MFE5-BW30+299
SKF MFE2-K3-2+299
SKF MFE2-KW3F-S9+MPG
SKF MFE2-K6F-S2+299
SKF MFE2-KW6F-S20+MPG
SKF MFE5-2000+299
SKF Gear pump unit NEW + ORIGINAL+ ONE YEAR WARRANTY
