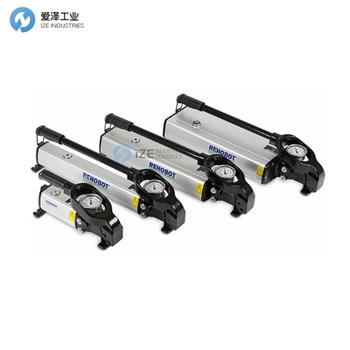

REHOBOT手動泵PHS系列介紹
產品描述
所有REHOBOT的PHS系列雙級液壓手動泵標配壓力表，為操作人員提供精確和安全的作業控制。壓力表直接安裝在泵上，并由專門設計的泵桿保護。雙級功能使泵使用更加簡便，確保相較于單級泵，氣缸或工具能顯著更快地達到工作位置。
所有泵均標配液壓回油連接。
堅固的鋁制油箱，重量輕且便于加油。
泄壓閥提供精確的泄壓控制。
安裝孔用于固定安裝，泵桿鎖定系統便于運輸。
LS201、LS250和LS301泵為含軟管和配件的完整套件，可立即使用。
壓力表
對于PHS70-xxxx和PHS80-xxxx系列的液壓手動泵，使用型號為50777的壓力表，顯示屏直徑為?60毫米。
對于PHS100-xxxx和PHS150-xxxx系列的液壓手動泵，使用型號為TX104的壓力表，顯示屏直徑為?60毫米。
型號以W結尾的泵配有直桿而無壓力表。
REHOBOT還為壓力達到150 MPa及以上的泵提供顯示屏直徑為?100毫米的較大壓力表。
對于PHS150-xxxxL系列的泵，使用型號為AMT151的壓力表，顯示屏直徑為?100毫米。
對于PHS240-xxxxL和PHS280-xxxxL系列的泵，使用型號為AMT301的壓力表，顯示屏直徑為?100毫米。
對于PHS300-xxxxL系列的泵，使用型號為AMT401的壓力表，顯示屏直徑為?100毫米。
在本頁面上，您將找到更多關于REHOBOT壓力表的信息。REHOBOT還提供不帶壓力表的PHS系列液壓手動泵。對于顯示屏的替代設計請求，我們也可以進行審核。如需額外的壓力表保護，請參見“壓力表保護”。
PHS200-1000L、PHS200-2400L、PHS240-2400L、PHS240-4100L、PHS280-2400L和PHS300-1000L專為超高壓設計。所有附加組件和配件都必須設計用于超高壓，例如配備錐形密封件。這些泵的液壓壓力連接為9/16″- 18 UNF螺紋接口，帶60°內錐?；赜瓦B接為G1/4″內螺紋。
注意：所有其他PHS泵的液壓壓力和回油連接為兩個G1/4″螺紋接口。
技術提示：選擇液壓系統的配件時，其壓力范圍應等于或高于泵的最大工作壓力。對于軟管，我們建議最大工作壓力與爆裂壓力之間保留3-4倍的安全
Product description
All REHOBOT's PHS series two-stage hydraulic hand pumps are equipped with a pressure gauge as standard. This gives the operator precise and safe control over the work being done. The pressure gauge is mounted directly on the pump and is well protected by the specially designed pump lever. The two-stage function makes the pump easier to use, and ensures that the cylinder or tool reaches its working position significantly faster compared to single-stage pumps.
Hydraulic return connection is standard on all pumps.
Robust aluminium tank with low weight and easy oil filling.
Relief valve provides precise control of the relief.
Mounting holes for fixed installations and pump lever locking system for easy transport.
The LS201, LS250 and LS301 pumps are complete kits with hose and fittings - ready for immediate use.
Pressure gauges
For hydraulic hand pumps in the PHS70-xxxx and PHS80-xxxx series, pressure gauge 50777, ?60 mm display is used.
For hydraulic hand pumps in the PHS100-xxxx and PHS150-xxxx series, pressure gauge TX104, ?60 mm display is used.
Pumps with a designation ending in W are supplied with a straight lever without a pressure gauge.
REHOBOT also offers pressure gauges with a larger display of ?100 mm for pumps with pressures of 150 MPa and above.
For pumps in the PHS150-xxxxL series, use pressure gauge AMT151, ?100 mm display.
For PHS240-xxxxL and PHS280-xxxxL series pumps, AMT301 pressure gauge, ?100 mm display is used.
For pumps of the PHS300-xxxxL series, pressure gauge AMT401, ?100 mm display is used.
On this page you will find more information about REHOBOT pressure gauges. REHOBOT also offers hydraulic hand pumps in the PHS series without pressure gauge. We can also review requests for alternative design of the display. Contact REHOBOT for questions about this. If additional protection of the pump's pressure gauge is required, see Pressure gauge protection.
* PHS200-1000L, PHS200-2400L, PHS240-2400L, PHS240-4100L, PHS280-2400L and PHS300-1000L are designed for ultra-high pressures. All additional components and accessories must be designed for use with ultra-high pressures e.g. equipped with conical seals. The hydraulic pressure connection on PHS200-1000L, PHS200-2400L, PHS240-2400L, PHS240-4100L, PHS280-2400L and PHS300-1000L is a 9/16″- 18 UNF threaded port with 60° internal taper. The return connection has a G1/4″ internal thread.
Note:The hydraulic pressure and return connections on all other PHS pumps are two G1/4″ threaded connections.
Technical tips:When accessories are selected for a hydraulic system, their pressure range should be equal to or higher than the maximum working pressure of the pump unit. For hoses, we recommend sizing with a 3-4 times safety margin between the maximum working pressure of the hydraulic system and the burst pressure of the hose. It is also important to ensure that the effective oil volume of the pump exceeds the total oil volume in the hydraulic system, preferably with a safety margin of approximately 20%.
REHOBOT手動泵他常見型號：
REHOBOT PHS45016
REHOBOT PHS70-300
REHOBOT PHS70-300W
REHOBOT PHS70-300/LS201
REHOBOT PHS70-1000
REHOBOT PHS70-1000W
REHOBOT PHS70-1000/LS201
REHOBOT PHS70-1000/LS250
REHOBOT PHS70-1000/LS301
REHOBOT PHS70-2400
REHOBOT PHS70-2400W
REHOBOT PHS80-2400W
REHOBOT PHS80-4100
REHOBOT PHS100-1000
REHOBOT PHS100-1000W
REHOBOT PHS100-1000L
REHOBOT PHS100- 2400
REHOBOT PHS100-2400W
REHOBOT PHS100-4100
REHOBOT pump NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REHOBOT手動泵PHS45016的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REHOBOT products, please feel free to dial 0086-21-3100 6702/ send request eAADail to sales@ize-industries.coAAD / browse our website: .
REHOBOT手動泵PHS系列PHS45016產品介紹
