FILTERMIST過濾器2300AFA產品參數
TECHNICAL SPECIFICATION | |||
2300AFA | |||
Airflow (m3/h) | Unit Attached | 50 Hz | 60 Hz |
S400 | 387 | 460 | |
S800 | 712 | 798 | |
Weight (kg) | 3 | ||
Filter Classification (EN779:2012) | F8 (> 92%) | ||
FILTERMIST過濾器產品介紹
描述
2300AFA/AFB 后過濾器專為連接 Filtermist S400 和 S800 油霧過濾裝置而設計。
后過濾器旨在去除油煙以及通過 Filtermist 油霧收集器后仍殘留的亞微米顆粒。這些后過濾器可以便捷地安裝在 Filtermist 設備的排氣端，采用夾子固定到位。
后過濾器是一種媒體過濾筒，通過形成物理屏障，使空氣必須通過過濾材料。其使用壽命取決于具體應用，對于產生煙霧或非常細的油粒的場合，建議安裝后過濾器以確保過濾效果。
過濾器由連續折疊的過濾介質制成，頂部為注塑成型的端蓋，底部為整體成型的基座，帶有一體成型的鉤子。折疊的濾料外側由鋁網支撐?；車O(shè)有泡沫密封，以確?？諝馔ㄟ^(guò)濾料。該結構輕便且堅固，適用于各種工業環境。
DESCRIPTION
The 2300AFA/AFB is specifically designed for connection to the Filtermist S400 & S800 Oil Mist Filtration Units.
Afterfilters are designed for the removal of oil smoke and any submicron particles that have passed through the Filtermist oil mist collector unit. The afterfilters are retrofitted to the Filtermist unit and fit easily over the exhaust end of the unit using clips to hold it in place.
The afterfilter is a media type filter cartridge creating a physical barrier through which the air must pass,. The filters’ life depends on the application and any application producing smoke or very fine oil particles should be fitted with an afterfilter.

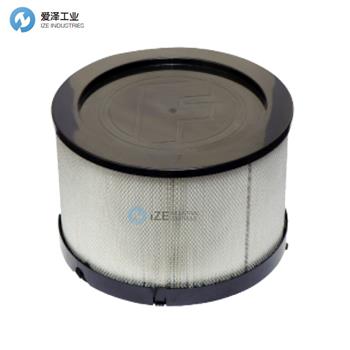

The filters are contructed of filter media formed into continuous pleats, injection moulded end cap at the top and a fully moulded base with integrally moulded hooks. The pleated media is then supported by aluminium mesh on the outside. There is a foam seal around the base to ensure the air flow passes through the media filter. This construction makes it very light and robust.
FILTERMIST過濾器其他常見型號：
FILTERMIST 2300AFA
FILTERMIST 2300AFB
FILTERMIST 2300FKT
FILTERMIST Filters NEW + ORIGINAL+ ONE YEAR WARRANTY
