BRINKMANN泵STC260/600系列技術參數
Type | STC260 / 600 |
Max. del. pressure bar / spec. weight 1 | 9.2 |
Max. del. volume l/min | 305 |
Height H mm | 534 |
Pipe connection G | G 1 ? |
Depth of immersion h mm | 593 |
Weight kg | 66 |
Power 50 / 60 Hz kW | 5.0 / 5.75 |
Noise level dBA / 50 Hz | 70 |
BRINKMANN泵STC系列介紹
這種類型的泵是多級旋轉泵，浸沒部件由不銹鋼制成。TC/STC 系列使用封閉式葉輪，以最大限度地降低功耗并優化液壓泵效率。泵軸和電機軸通過聯軸器連接。泵軸由旋轉機械密封件密封。泵通過過濾器防止雜質進入。泵和電機形成一個緊湊且節省空間的單元。垂直安裝的泵配有安裝法蘭。泵端浸入油箱，電機垂直延伸到油箱上方。

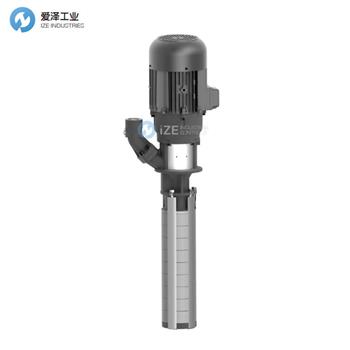

Pumps of this type are multi-stage rotary pumps with immersed parts of stainless steel. Series TC/STC use closed impellers in order to minimizing power consumption and to optimize hydraulic pump effi ciencies. The pump shaft and the motor shaft are connected by a coupling. The pump shaft is sealed by a rotating mechanical seal. The pump is protected again impu rity by a filter. Pump and motor form a compact and space-saving unit. Vertically mounted pumps are equipped with a mounting flange. The pump end immerses into the tank and the motor extends vertically above the tank.
BRINKMANN泵STC系列其他常用型號：
BRINKMANN STC260/460 MVX+443
BRINKMANN STC260/600-FKOX+310
BRINKMANN STC260/600-MV+314
BRINKMANN STC260/600-MVX+314
BRINKMANN STC160/580+001
BRINKMANN STC160/580-2M+055
BRINKMANN STC460 / 320
BRINKMANN STC460 / 390
BRINKMANN STC460 / 870
BRINKMANN PUMP NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BRINKMANN泵STC260/600-MVX+314的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BRINKMANN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website:www.wap.pnxqid.cn.
BRINKMANN泵STC260/600系列STC260/600-MVX+314技術參數及介紹
