AMAZON濾芯08NF010-29NNA技術參數
Code | 08NF010-29NNA |
08 | |
MEDIA | N - Nylon |
CORE MATERIAL | F - Tinned steel |
MICRON RATING | 010 - 10μm |
LENGTH | 29 - 743mm |
CONNECTIONS | N - None |
SEAL | N - None |
A |

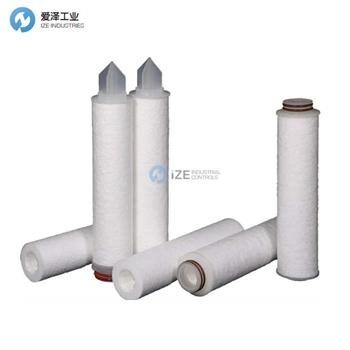

AMAZON濾芯VISCLEAR系列介紹
VISCLEAR 紡粘濾芯元件專門設計用于化學加工和液體涂料行業。 它采用 Amazon Filters 特別的纖維處理系統制造，具有受控的性能和無纖維脫落——這是高科技化學領域的要求。 它們提供高空隙體積和整體支撐芯以實現更大強度，在使用壽命和成本效益方面表現出出色的性能。 這些元件優于舊版 RBC（樹脂粘合濾芯），后者的去除效率評級相似。結構非常適合高溫、高粘度應用，即使在惡劣的操作條件下也能保持完整，并且不易發生纖維脫落。
? 一致且可靠的性能和效率
? 無樹脂粘合劑 - 熱粘合過程可阻止介質遷移并確保將萃取物降到更低
? 高機械強度——高溫粘膠解決方案的不錯選擇
? 分級密度結構可實現更大的納污能力
? 增加的空隙體積可提供高流量和低初始壓力損失
? 廣泛的化學兼容性，使用 100% 尼龍介質
? 標稱額定值范圍為 5 至 125 μm
VISCLEAR spun bonded cartridge elements have been specifically designed to operate in the chemical processing and liquid coatings industries. Manufactured using Amazon Filters unique fibre processing system, it offers controlled performance and no fibre shed – an absolute requirement in the world of high tech chemistry. Offering a high void volume and integral support core for maximum strength, they show excellent performance in terms of life and cost effectiveness. These elements excel against older RBC (Resin Bonded Cartridges) that are similarly rated in removal efficiencies. The superior structure is ideal for high temperature, high viscosity applications, and remains integral even under severe operating conditions and is not prone to fibre shed.
? Consistent and reliable performance and efficiency
? No resin binders - thermal bonding process stops media migration and ensures minimal extractables
? High mechanical strength – ideal for high temperature viscose solutions
? Graded density structure for maximum dirt holding capacity
? Increased void volume giving high flow rates and low initial pressure losses
? Wide chemical compatibility, using 100% nylon media
? Range of Nominal ratings from 5 to 125μm

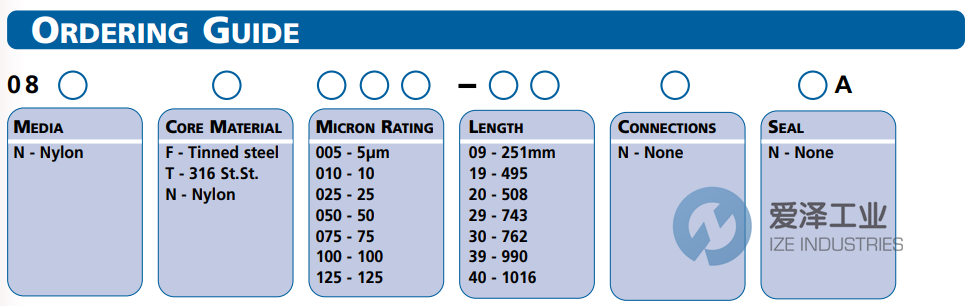

AMAZON濾芯VISCLEAR系列選型
AMAZON濾芯VISCLEAR系列其他常用型號：
AMAZON 08NF025-09NNA
AMAZON 08NF010-09NNA
AMAZON 08NF010-19NNA
AMAZON 08NF010-29NNA
AMAZON 08NF010-30NNA
AMAZON 08NF010-39NNA
AMAZON 08NF010-40NNA
