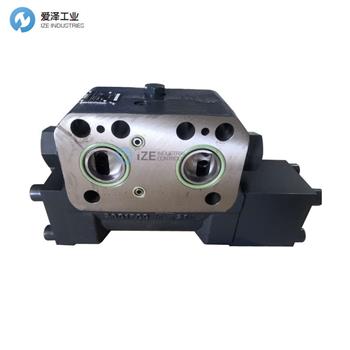

REXROTH制動閥R902068290 BVD25W38S/41B-V12K00B0655S00-S W ZDB技術參數
Code | BVD25W38S41B-V12K00B0655S00-S W ZDB |
Valve type | BVD = Counterbalance valve, double-acting |
Size | 25 = Flow, max. qv max 320 l/min |
Control range | W = 20...40 bar (winch and track drive) |
Ports | 38 = NG, 25; A2FM/E./.181, 107, 125, 160, 180; A6VM./.380, 107, 140, 160 |
Ports for brake release | S = with high pressure |
Series | 41 = Series 4, Index 1 |
Long cover | B = B-side (standard) |
Seals | V = FKM (fluor-caoutchouc) |
Piston version | 12 |
Residual opening in piston | K00 = Without residual opening (obligatory for winches) |
Damping during closing | B0655 |
Flushing cavity | S00 = Plugged |
REXROTH制動閥BVD系列介紹
特征
– 緊湊的設計和直接安裝在 A2FM(E) 和 A6VM 軸向柱塞電機（63 系列）上，節省安裝空間
– 與 A2FM(E) 和 A6VM 軸向柱塞馬達（63 系列）和 GFT 齒輪箱成套提供； 測試臺按標準運行。
– 符合 SAE J518 的標準服務線端口
– 集成制動釋放閥，帶或不帶減壓功能
– 低流阻帶來高效率
– 由于模塊化設計，調試期間可以輕松進行優化。
Features
– Space-saving installation due to compact design and direct mounting on A2FM(E) and A6VM axial piston motors (series 63)
– Available as a complete set with A2FM(E) and A6VM axial piston motors (series 63) and GFT gear units; test stand run as standard.
– Standard service line ports according to SAE J518
– Integrated brake release valve, with and without pressure reduction
– High efficiency due to low flow resistance
– Easy optimization options during commissioning due to modular design.

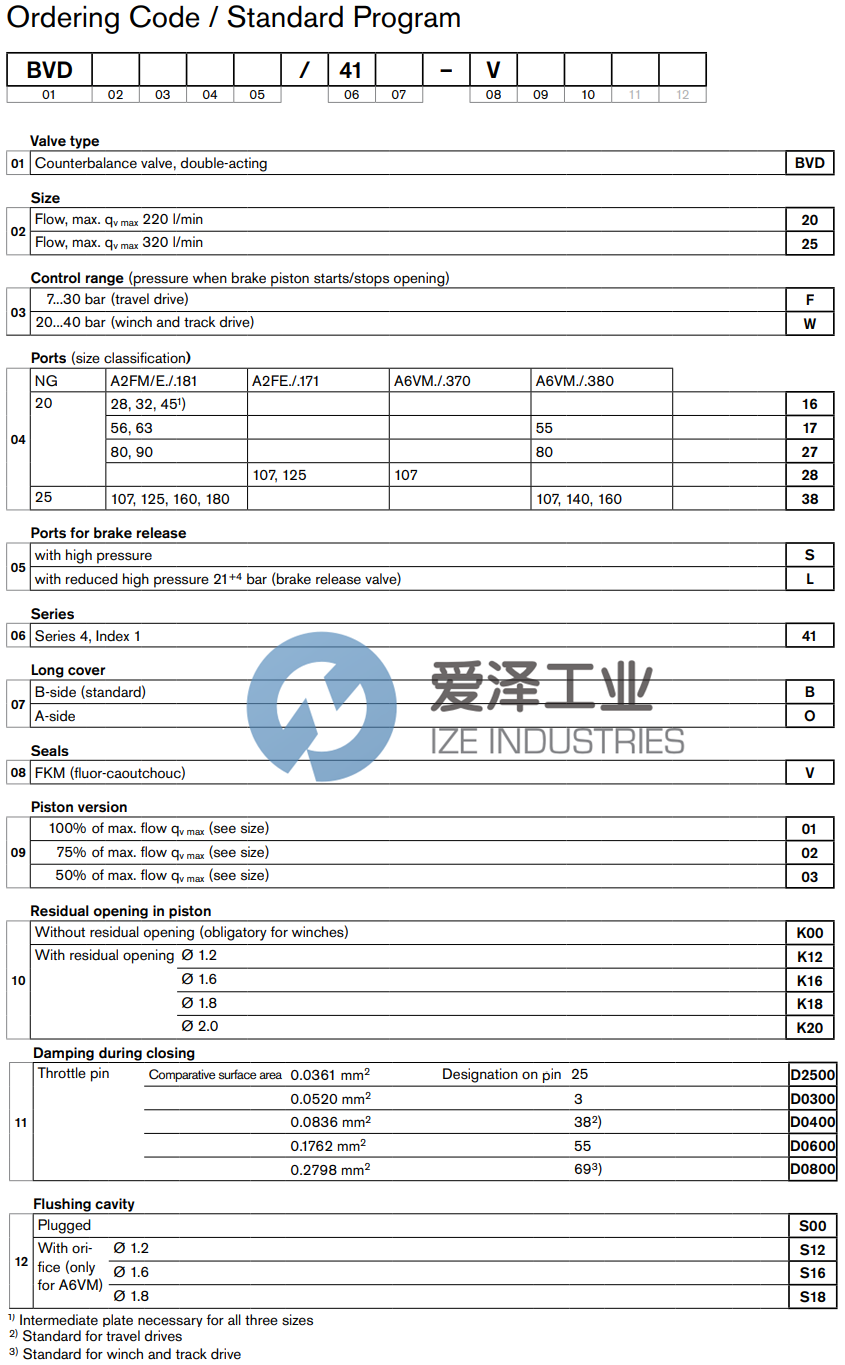

REXROTH制動閥BVD系列選型
REXROTH制動閥BVD系列常用型號：
REXROTH R902068290 BVD25W38S/41B-V12K00B0655S00-S W ZDB
REXROTH R902107370 BVD25W38S/41B-V01K00D0800S00 50425.1066
REXROTH R902064672 BVD25W38S/41B-V02K00D0800S00
REXROTH R902070343 BVD25W38S/41B-V02K00D1000S00
REXROTH VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH制動閥R902068290 BVD25W38S/41B-V12K00B0655S00-S W ZDB的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website:www.wap.pnxqid.cn.
REXROTH制動閥BVD系列R902068290 BVD25W38S/41B-V12K00B0655S00-S W ZDB技術參數及選型
