DUPLOMATIC流量控制閥MERS 50系列技術參數
PERFORMANCES (measured with mineral oil of viscosity 36 cSt at 50°C) | |
Maximum operating pressure | 350 bar |
Check valve cracking pressure | 0,5 bar |
Maximum flow rate in the controlled lines | 50 l/min |
Maximum flow rate in the free lines | 75 l/min |
Min. controlled flowrate with ?p 10 bar | ≤0,060 l/min |
Ambient temperature range | -20 / +60 °C |
Fluid temperature range | -20 / +80 °C |
Fluid viscosity range | 10 ÷ 400 cSt |
Fluid contamination degree | According to ISO 4406:1999 class 20/18/15 |
Recommended viscosity | 25 cSt |
Mass | 1,3 kg |

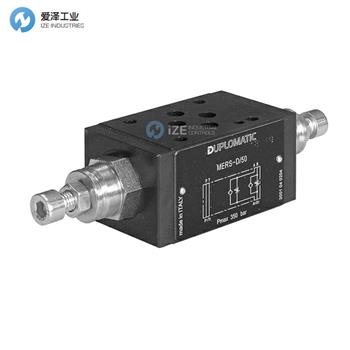

DUPLOMATIC流量控制閥MERS系列介紹
MERS 是一種單向流量控制閥，帶有用于反向自由流動的止回閥，采用可堆疊版本制造。有入口節流控制和出口節流控制兩種版本?？赡姘姹?(MERS-G *) 配備 O 形環底板，可用于入口節流或出口節流，具體取決于閥門面對 OR 底板的方式。它配有內六角調節螺釘。
MERS is a one-way flow control valve, with non-return valve for reverse free flow, made in stackable version. There are versions both for meter-in control and for meter-out control. The reversible versions (MERS-G *) are equipped with an O-ring subplate and can be used for both meter-in or meter-out, depending on the way in which the valve is facing the OR subplate. It is supplied with a socket hex adjustment screw.

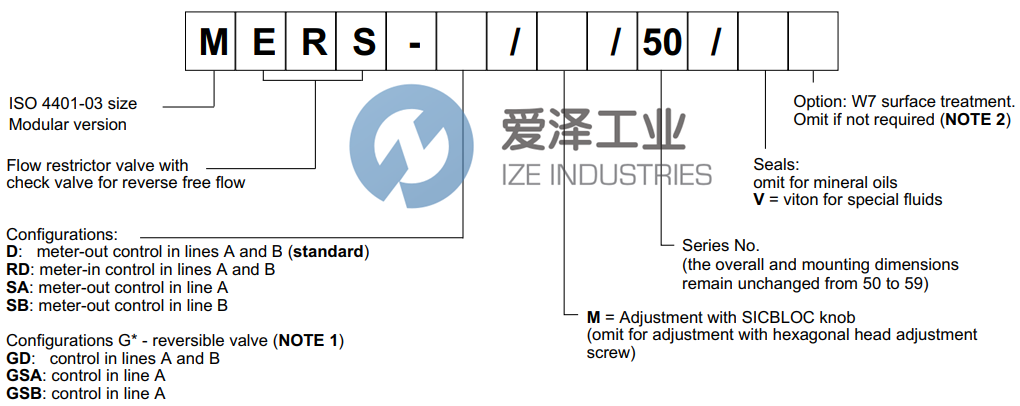

DUPLOMATIC流量控制閥MERS 50系列選型
DUPLOMATIC流量控制閥MERS系列其他常用型號：
DUPLOMATIC MERS-D/50
DUPLOMATIC MERS-SA/50
DUPLOMATIC MERS-RD//50
DUPLOMATIC MERS-SB/50
DUPLOMATIC MERS-D/50/NL
DUPLOMATIC MERS-SB/M/50
DUPLOMATIC MERS-SB/M/50/V
DUPLOMATIC MERS-GSA/M/50/V
DUPLOMATIC FLOW RESTRICTOR VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DUPLOMATIC流量控制閥MERS-D/50的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DUPLOMATIC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website:www.wap.pnxqid.cn.
DUPLOMATIC流量控制閥MERS系列MERS-D/50技術參數及選型
