DIOTTALEVI氣缸320系列技術參數
FUNCTIONAL CHARACTERISTICS | |
fluid | ?filtered air with or without lubrication |
max pressur | 10 ba |
temperature | 0℃÷80℃ (-20℃with dry air) |
MANUFACTURING CHARACTERISTICS | |
heads | in black painted die-cast aluminum alloy |
sleeve | in extruded aluminum alloy calibrated and hard oxidized inside-out |
stem | in chromed C40 steel (stainless steel upon request) |
piston | monoblock in special NBR rubber vulcanised on a metal disc |
rod guide bushing | self-lubricating with steel reinforcement lined internally in PTFE |
rod sealing gaskets | in special NBR rubber |
other gaskets | in NBR rubber |
DIOTTALEVI氣缸320系列介紹

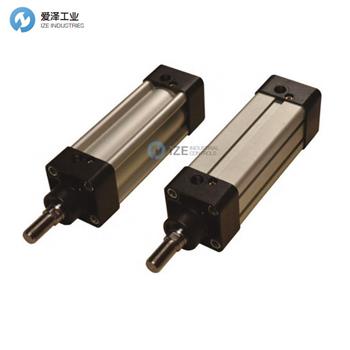

Series 320
TECHNICAL CHARACTERISTICSDouble-acting with limit switch deceleration (without decelerator on request), also operates without lubrication, end cover directly fixed on the tube (D. 32 - 125) by tie rods (D. 160 - 200).
320系列
雙作用，帶限位開關減速（根據要求不帶減速器），也無需潤滑即可運行，端蓋通過拉桿（D. 160 - 200）直接固定在管（D. 32 - 125）上。
DIOTTALEVI氣缸320系列其他常用型號：
Diottalevi 320.01.032.550
Diottalevi 320.01.050.350
Diottalevi 320.02.050.120
Diottalevi 320.010.032.1440
DIOTTALEVI Pneumatic cylinders NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DIOTTALEVI氣缸320.01.032.550的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DIOTTALEVI products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website:www.wap.pnxqid.cn.
DIOTTALEVI氣缸320系列320.01.032.550技術參數及選型
