JOTRON雷達應答器TRON SART20技術規格
ELECTRICAL SPECIFICATIONS | |
Frequency: | X-band (3 cm) (9.2 - 9.5 GHz) |
Temperature range: | Operating: -20 to +55°C |
Radiated power: | > 400 mW e.i.r.p (+26 dBm) |
Sweep type: | 12 sweep sawtooth type |
Receive sensitivity: | Better than -50 dBm e.r.s. |
Response delay: | Max 0.5 us |
Antenna pattern: | Horizontal polarization |
Battery: | Lithium metal 7,2V/3600 mAh, 5 years service life. |
Battery capacity: | 96 hours standby +8 hours continuous operation when activated by a radar with 1 kHz prf at -20°C. |

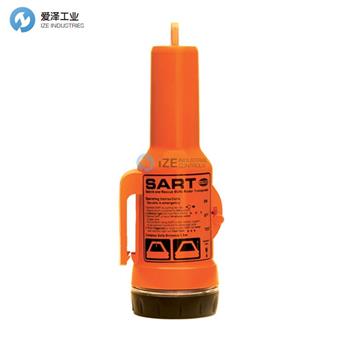

JOTRON雷達應答器TRON SART20產品介紹
Jotron AS開發了9 GHz雷達應答器Tron SART20，以符合用于海事服務的船舶和救生筏的規則和規定。Tron SART20符合用于海上搜索和救援行動的9 GHz雷達應答器的規范。
Tron SART20的工作范圍可達30海里，具體取決于電子裝置的高度和搜救裝置（海上或空降）的雷達高度。雷達高度為20m，Tron SART20放置在海拔1m處，射程可達10海里。Tron SART20具有浮力，但是為了獲得最佳性能，應將應答器放置在垂直位置并盡可能高，以實現最大覆蓋范圍。提供幾個安裝支架和安裝輔助工具，以確保正確安裝和使用雷達應答器。
Tron SART20的目的是在搜索和救援單位搜索遇險救生筏/救生艇時發出二次警報。Tron SART20將幫助單位精確確定遇險船在較大區域中的位置。這是在搜索船或直升飛機上的雷達的幫助下完成的。
The 9 GHz radar transponder type Tron SART20 is developed by Jotron AS to meet the rules and regulations for use on vessels and life rafts in the maritime service. Tron SART20 meets the specifications for 9 GHz radar transponders for use in search and rescue operations at sea.
The operating range of the Tron SART20 is up to 30 nautical miles, depending on the height of the electronic unit and the radar height of the search and rescue unit (sea or airborne). With a radar height of 20m and the Tron SART20 placed at 1m above sea level, the range will be up to 10 nautical miles. Tron SART20 is buoyant, however to obtain maximum performance the transponder should be placed in a vertical position and as high up as possible in order to achieve maximum coverage. Several mounting brackets and mounting aids are available to ensure correct mounting and use of the radar transponder.
The purpose of the Tron SART20 is to perform a secondary alarm when search and rescue units are searching for a life raft / lifeboat in distress. The Tron SART20 will help the units to pinpoint exactly where the distressed boat is located in a larger area. This is done with the help of the radar on the searching ship or helicopter.
