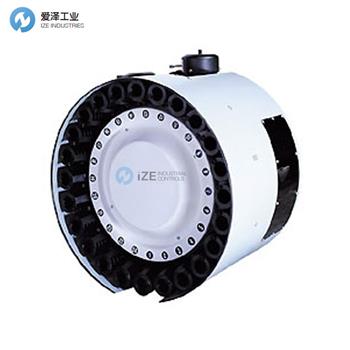

CHENSOUND旋轉刀具DIN40#24T規格介紹
Tool Capacity | 16T~40T(24T) |
Tool Models | BT/CAT/ISO/HSK/SK Series |
Tool Change Time | 1.0~1.8sec |
Maximum Tool Weight | 8kg |
Maximum Tool Length | 350mm |
24T as Example | |
Tool Holder Distance To Center | 80mm |
Maximum Tool Diameter | Max Full Load Dia.：φ80mm |
Maximum Unbalance Load | 90kg |
Tool Magazine Drive Source | Input Voltage：AC220V 3φ 60HZ/380V 3φ50HZ |
Pneumatic Pressure | 5~6kg/c㎡ |
CHENSOUND旋轉刀具DIN40#24T產品介紹
產品描述：
采用斷振電機凸輪驅動，機構簡單，產品成熟可靠。
產品特點：
刀具夾持器由工業塑料制成，堅固耐用，適用于-20°C至120°C的環境溫度。重量輕，抗老化和腐蝕。在正常使用條件下，刀具夾持器不會磨損。
刀具夾持軌采用專利設計，在刀具托盤旋轉過程中噪音低、振動小。
刀具反轉機構采用曲線凸輪設計，確保反轉平穩，防止壓力下降時刀具夾持器下垂。
刀庫機構堅固，能承受高速換刀和重型刀具。
刀盤運動采用桶形凸輪設計，運動平穩、安靜且精確。
Product Description:
It uses the break motor cam drive, Mechanism is simple, product is mature and reliable.
Product Character
Tool holder is made from industrial plastic. It is strong and is suitable for temperature between -20C~120C. It is also light weight, Deterioration and corrosion resistant. 0% holder wear under normal usage condition.
The tool holder rail uses a patent design that has low noise and low vibration during tool tray rotation.
Tool reverse mechanism uses a curve cam design that ensures smooth tool reverse movement and prevents tool holder drooping during pressure drop.
Tool magazine mechanism is stiff. It can withstand high speed tool changes and heavy tools.
Tool tray movement utilizes barrel cam design, Movement is smooth, quiet, and precise.
CHENSOUND旋轉刀具其他常用型號：
CHENSOUND DIN40#24T
