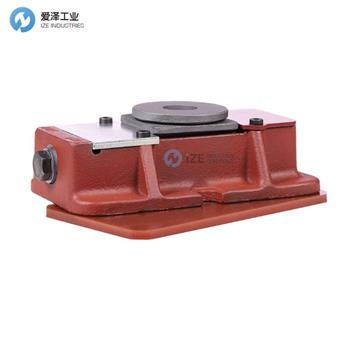

BWF固定器LKII技術參數
Size | LK II |
Permissible maximum load | 55.000N |
Permissible maximum lifting load | 40.000N |
Torque at adjusting screw | |
Maximum- | 35Nm |
Security- | 4-7Nm |
Vertical Adjustment per screw turn | 0.37mm |
Weight of basic unit | 4,2kg |
BWF固定器LK系列介紹
BW-Fixators的LK 系列專為機器的防震和松動對準而發明。由于 10 毫米的超長設置范圍，可以輕松補償不平整的表面。
該系列有兩種尺寸可供選擇，載荷值為 30.000 N 至 55.000 N。
調整操作簡單，并且不會發生意外調整（例如振動）。 這些 BW-Fixators? 的應用可通過多種不同的變體進行定制。 不同的隔離板由多層黃麻織物與高壓下的特殊瀝青結合制成，或由聚氨酯制成的隔離板可以實現抗振對齊。
機器對準的時間將顯著減少。 如果由于基礎移位或收縮而需要重新調整機器，可以簡單快速地完成。
對齊可以松散地進行，也可以使用不同的錨點進行。
The BW-Fixators? of series LK have been invented especially for the anti-vibrant and loose alignment of machines. Due to a exceedingly long setting range of 10 mm uneven surface can be compensated easily.
With this series are two sizes availabe with load values from 30.000 N up to 55.000 N.
The adjustment is easy in opertation and safe from unintentional adjustment (e.g. vibration). The applications of these BW-Fixators? can be customized by a lot of diffrent variants. Diffrent isolation plates, made from multiple layers jute fabric combined with special bitumen under high pressure or isolation plates made of polyurethane allow the anti-vibrant alignment.
The time for the alignment of your machine will be reduced significant. If the machines needs to be re-adjusted because of foundation shifting or shrinkage, it can be done simply and fast.
The alignment can be done loose or with diffrent anchors.
BWF固定器LK系列其他常用型號：
BWF LK I
BWF LK II
