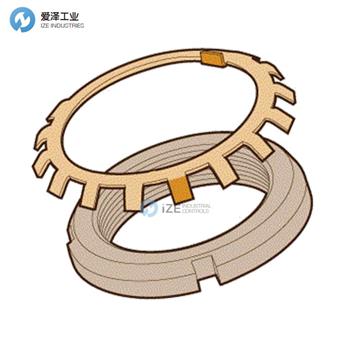

WHITTET-HIGGINS螺母NH-24產品參數
Identification | NH-24 |
Thread | 4.716-12 |
Outside Dia (inches) | 6.125 |
Face Dia (inches) | 5.688 |
Width (inches) | 1.041 |
Axial Load (lbs) | 132700 |
Lockwasher | WH-24 |
WHITTET-HIGGINS螺母NH系列產品參數
Designed with greater thread length to provide greater strength in heavy load situations such as with tapered roller bearings, one of these locknuts may replace the need for two N or TN locknuts between which is mounted a lockwasher.
Tolerances are tighter because this nut is so often used with tapered roller bearings. The most important tolerance - total indicator reading - of runout of the bearing faces to the pitch diameter of the thread is held within .002 for all sizes rather than ranging up to .006 as in the N-AN series. Surface finish of 100 microinches is for both faces in this series, not just the bearing face.
With this series of locknuts a thicker lockwasher (Series WH) is generally used, for it has more strength for the heavy loads in tapered bearing applications
這些鎖緊螺母設計有更長的螺紋長度，可在重負載情況（例如圓錐滾子軸承）下提供更大的強度，其中一個鎖緊螺母可以取代兩個N 或TN 鎖緊螺母（其間安裝有鎖緊墊圈）的需要。
由于這種螺母經常與圓錐滾子軸承一起使用，因此公差更嚴格。對于所有尺寸，最重要的公差（總指示器讀數）軸承面相對于螺紋中徑的跳動都保持在 0.002以內，而不是像N-AN系列中那樣高達 0.006。100 微英寸的表面光潔度適用于該系列中的兩個面，而不僅僅是承載面。
對于該系列鎖緊螺母，通常使用較厚的鎖緊墊圈（WH 系列），因為它對于圓錐軸承應用中的重載荷具有更大的強度
