OIL-RITE液位開關B2364-2技術參數
Specifications | |
Feature | With Housing |
Contacts | Normally Closed |
Float | Stainless Steel |
Max Pressure | Not Rated |
Max Temperature | 170° F |
OIL-RITE液位開關B2364-2產品介紹
外殼中的單級液位開關設計用于在液體供應出現故障或下降到預定水平時關閉機械或打開警告裝置。它們可以通過接線來閃爍警告燈、發出吼叫聲、關閉機器或向計算機發出信號。這在無人值守的自動化工廠中特別有用。這些裝置可用于大型軸承、齒輪箱、變壓器、斷路器、油箱和螺桿機上的切削油槽，以及許多其他應用。
安裝孔中心之間的距離為4 3/8"。該裝置可承受高達170° F的溫度。 裝置的總高度為6 3/8"。該裝置的最大直徑為 3 3/8"。

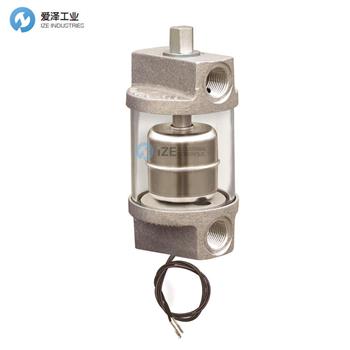

Single Stage Liquid Level Switches in Housings are designed to shut down machinery or turn on warning devices when the liquid supply fails or recedes to a predetermined level. They can be wired to flash a warning light, sound a howler, shut down a machine, or signal a computer. This is especially helpful in unattended automated plants. The units can be used with large bearings, gear cases, transformers, circuit breakers, oil tanks, and cutting oil reservoirs on screw machines, along with many other applications.
The distance between centers of the mounting holes is 4 3/8". This unit tolerates temperatures up to 170° F. The overall height of the unit is 6 3/8." The largest diameter of the unit is 3 3/8".
OIL-RITE液位開關B2364系列其他常用型號：
OIL-RITE B2364-1
OIL-RITE B2364-2
OIL-RITE B1519-1
OIL-RITE B1519-2
OIL-RITE Liquid Level Switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于OIL-RITE液位開關B2364-2的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for OIL-RITE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website:www.wap.pnxqid.cn.
