THERM-COIL恒溫器E-2541-K技術參數
Technical Information | |
Switch Type: | SPST (Single Pole, Single Throw). A SPST switch turns a single circuit on or off. |
Switch Action: | Normally Closed Contacts Open on Temperature Rise Only. |
Thermostat Voltage: | 120 to 250VAC |
Non-Inductive Amperage Rating: | 25A MAX. Total Resistive Load |
Themperature Control Range: | 60°F to 250°F |
Maximum Temperature Differential: | 8° |
Capillary Length: | 48" (±2") |
Sensing Bulb Diameter: | 3/8" |
Sensing Bulb Length: | 4-1/4" (±1") |
Capillary and Sensing Bulb Material: | Copper |
Pilot Light: | No |
Enclosure: | None |
Mount Type: | Unit Mount via (2x) #6-32 mounting holes. |
Thermostat Height x Width: | 2-61/64" x 1-21/32" |
U.L. Listed and C.S.A. Certified. |

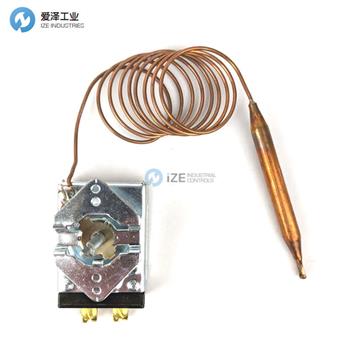

THERM-COIL恒溫器E-2541-K產品介紹
E-2541-K：60°-250°F SPST 加熱線電壓機械恒溫器，120 至 250VAC，最大 25A。
描述
? E-2541-K 加熱控制器的溫度范圍為 60°-250°F ，額定電壓為 120 至 250VAC，最大 25A，電阻負載。 該控件有一個 48" (±2") 銅質毛細管和一個 3/8" DIA. x 4-1/4" (±1") 長傳感燈泡。
? 應用： 這種不可編程、速動式、機械式單刀單擲 (SPST) 恒溫器僅用于加熱控制。（這不適 用于 冷卻應用。）這些控件通常用于水箱、烤箱、清潔浴和許多其他應用，并在達到設定溫度時自動關閉加熱設備。
E-2541-K: 60°-250°F SPST Heating Line Voltage Mechanical Thermostat, 120 to 250VAC, 25A MAX.
Description
? E-2541-K heating control has a temperature range of 60°-250°F, and is rated for 120 to 250VAC with 25A MAX, resistive load. This control has a copper 48" (±2") capillary with a 3/8" DIA. x 4-1/4" (±1") long sensing bulb.
? Application: This non-programmable, snap-acting, mechanical Single Pole, Single Throw (SPST) thermostat is for heating control only. (This will not work for cooling applications.) These controls are commonly used in tanks, ovens, cleaning baths, and many other applications and automatically turn off heating equipment when the set temperature is reached.
THERM-COIL恒溫器E系列其他常用型號：
THERM-COIL E-2511-K-12
THERM-COIL E-2541-K
THERM-COIL E-5511-K-18
